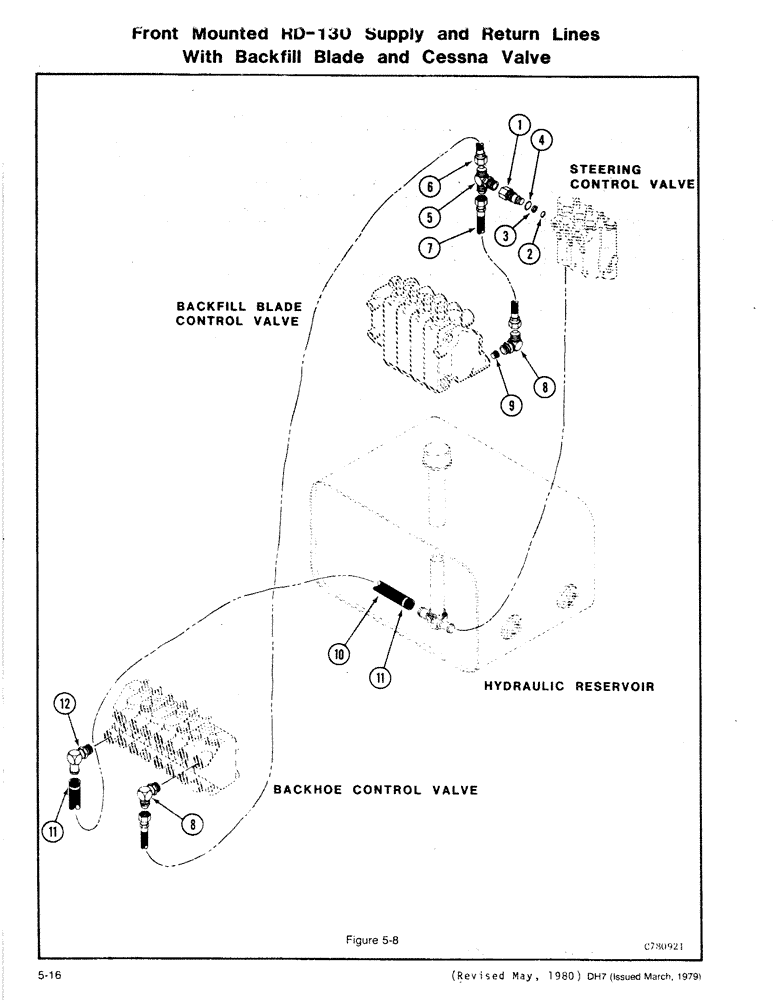

Запчасти Case DH7 (5-16) - FRONT MOUNTED RD-130 SUPPLY AND RETURN LINES, WITH BACKFILL BLADE AND CESSNA VALVE (35) - HYDRAULIC SYSTEMS

D61608

SLEEVE

ADAPTER - Power Beyond, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

O RING

1шт.

3

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

4

A14814

O RING

1шт.

5

D53471

TEE

(7/8 ORB x 7/8 JIC M x 7/8 JIC M)

1шт.

6

H387209

HOSE - 1/2 x 4250 mm (7/8 JIC Fe Sw Ends)

1шт.

7

D57699

HOSE

- 1/2 x 18 (7/8 JIC Fe Sw Ends)

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees (7/8 ORB x 7/8 JIC M)

2шт.

9

221-23

PLUG

- Power Beyond (3/8 Soc Hd Pipe)

1шт.

10

H353516

HOSE

- 3/4 x 96

1шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

12

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 degrees (7/8 ORB x 3/4 Barb)

1шт.
