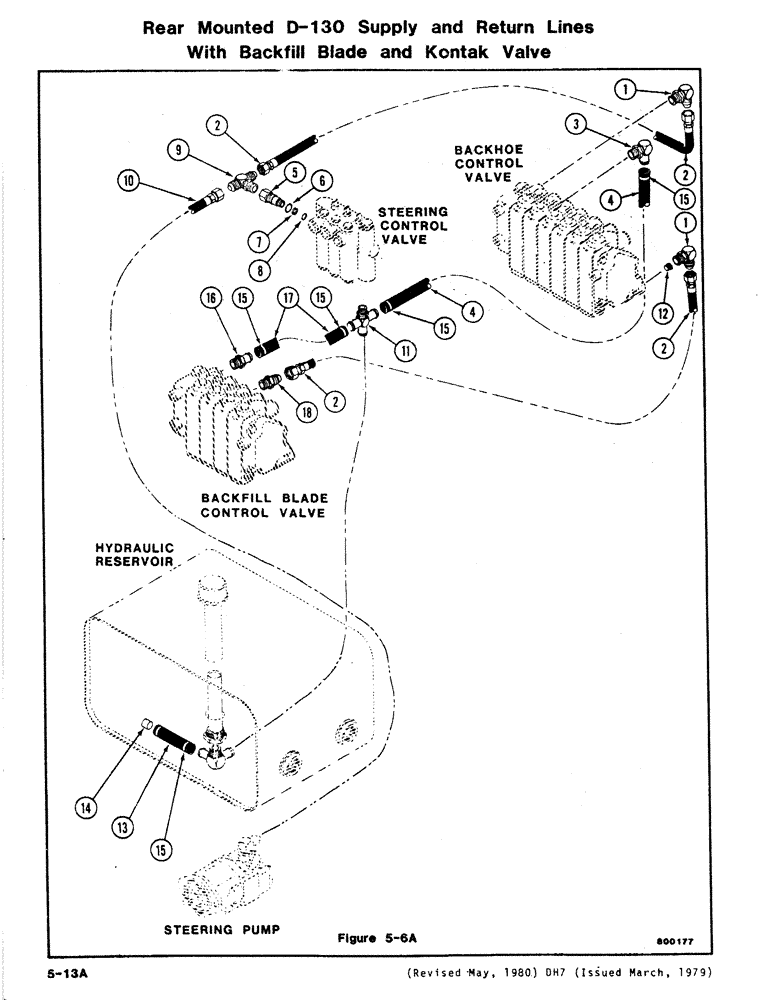

Запчасти Case DH7 (5-13A) - REAR MOUNTED D-130 SUPPLY AND RETURN LINES, WITH BACKFILL BLADE AND KONTAK VALVE (35) - HYDRAULIC SYSTEMS

1

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degrees (7/8 ORB & 7/8 JIC M)

2шт.

2

H266676

HOSE ASSY.

HOSE 1/2 x 72 (7/8 JIC Fe Sw Ends)

2шт.

3

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW 90 degrees (7/8 ORB & 3/4 Barb)

1шт.

4

H341362

HOSE

3/4 x 80

1шт.

D61608

SLEEVE

ADAPTER - Pressure Beyond, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

BODY

1шт.

6

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

O RING (7/8)

1шт.

7

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

8

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

O RING

1шт.

9

D53471

TEE

(7/8 ORB & 7/8 JIC M & 7/8 JIC M)

1шт.

10

H215798

HOSE 1/2 x 69 (7/8 JIC Fe Sw Both Ends)

1шт.

11

H382093

CROSS (3/4 ORB & 3-3/4 Barb)

1шт.

12

221-23

PLUG

- Power Beyond (3/4 SHd P)

1шт.

13

A9156

HOSE,0.75" ID x 4.50"

1шт.

14

H269449

PLUG

(3/4)

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose #20

6шт.

16

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER - St (1-1/16 ORB & 3/4 Barb)

1шт.

17

H93385

HOSE

3/4 x 7

1шт.

18

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - St (1-1/16 ORB & 7/8 JIC M)

1шт.
