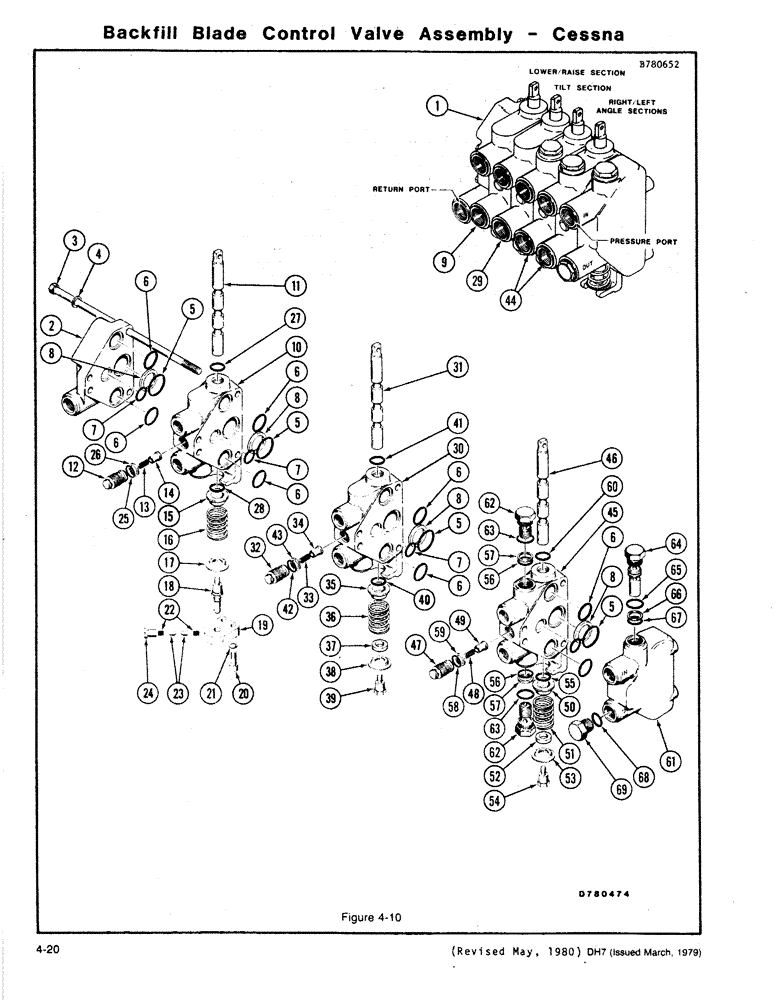

Запчасти Case DH7 (4-20) - BACKFILL BLADE CONTROL VALVE ASSEMBLY - CESSNA (35) - HYDRAULIC SYSTEMS

1

H645887

VALVE ASSEMBLY - Backfill Control, Includes: Ref. 2 - 69 and Kit

1шт.

2

H52803

PLATE ASSY.

OUTLET SECTION - Valve

1шт.

3

H220483

BOLT

- Section Retaining

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

H648840

SEAL ASSY.

KIT - Seal Repair (section to section), Includes: Ref. 5 - 8

1шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - O-RING (medium)

10шт.

6

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

SEAL - O-RING (large)

5шт.

7

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - O-RING (small)

5шт.

8

H210849

WASHER

- Backup

5шт.

9

H648824

LOWER/RAISE SECTION - Valve (detent), Includes: Ref. 10 - 28

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - Valve Section

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - Valve

1шт.

12

H52886

BODY

- Lift Check

1шт.

13

H47514

SPRING

- Check

1шт.

14

H52894

PLUNGER

- Check

1шт.

15

H138271

WASHER

RETAINER - Spring (deep)

1шт.

16

F59118

SPRING

- Spool Return

1шт.

17

F59116

WASHER

RETAINER - Spring (shallow)

1шт.

18

H139071

SCREW,1/4" - 20

- Detent Float

1шт.

19

H125831

BLOCK

- Detent, Includes: Ref. 20 and 21

1шт.

20

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - Cap

2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

H105049

SPRING

- Detent

2шт.

23

H104992

PAWL

- Detent

2шт.

24

H105015

PLUG

- Detent

1шт.

H52977

GASKET KIT

KIT - Seal Repair, Includes: Ref. 25 - 28

1шт.

25

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - O-RING, Check

1шт.

26

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER - Backup, Check

1шт.

27

F37887

O-RING

SEAL - O-RING, Spool (upper)

1шт.

28

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-RING, Spool (lower)

1шт.

29

H648816

TILT SECTION - Valve, Includes: Ref. 30 - 43

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - Valve Section

1шт.

31

NSS

NOT SOLD SEPARAT

SPOOL - Valve

1шт.

32

H52886

BODY

- Lift Check

1шт.

33

H47514

SPRING

- Check

1шт.

34

H52894

PLUNGER

- Check

1шт.

35

H52902

CAP

RETAINER - Spring (deep)

1шт.

36

H220517

SPRING

- Spool Return

1шт.

37

H746164

WASHER

SPACER - Spring

1шт.

38

F59116

WASHER

RETAINER - Spring (shallow)

1шт.

39

H138248

SCREW,1/4" - 20 x 7/16"

- Spool

1шт.

H52977

GASKET KIT

KIT - Seal Repair, Includes: Ref. 40 - 43

1шт.

40

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-RING, Spool (lower)

1шт.

41

F37887

O-RING

SEAL - O-RING, Spool (upper)

1шт.

42

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - O-RING, check

1шт.

43

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER - Backup, check

1шт.

44

H648832

ANGLE SECTION - Valve (left & right), Includes: Ref. 45 - 60

2шт.

45

NSS

NOT SOLD SEPARAT

BODY - Valve Section

1шт.

46

NSS

NOT SOLD SEPARAT

SPOOL - Valve

1шт.

47

H52886

BODY

- Lift Check

1шт.

48

H47514

SPRING

- Check

1шт.

49

H52894

PLUNGER

- Check

1шт.

50

H52902

CAP

RETAINER - Spring (deep)

1шт.

51

H220517

SPRING

- Spool Return

1шт.

52

H746164

WASHER

SPACER - Spring

1шт.

53

F59116

WASHER

RETAINER - Spring (shallow)

1шт.

54

H138248

SCREW,1/4" - 20 x 7/16"

- Spool

1шт.

H52985

GASKET KIT

KIT - Seal Repair, Includes: Ref. 55 - 60

1шт.

55

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-RING, Spool (lower)

1шт.

56

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-RING, Relief Valve

4шт.

57

A35698

BACK-UP RING

WASHER - Backup Relief Valve

2шт.

58

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - O-Ring, Check

1шт.

59

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER - Backup, Check

1шт.

60

F37887

O-RING

SEAL - O-Ring, Spool (upper)

1шт.

61

H52852

PLATE ASSY.

INLET AND OUTLET SECTION - Valve

1шт.

H351791

VALVE

- Relief (3000 PSI) (angle sections), Includes: Ref. 62 and 63

4шт.

62

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

63

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring

1шт.

F88054

VALVE

- Relief (2000 PSI) (inlet and outlet section), Includes: Ref. 64 - 67

1шт.

64

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

H226415

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 65 - 67

1шт.

65

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring (large)

1шт.

66

G32626

RING

WASHER - Backup

1шт.

67

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-Ring (small)

1шт.

68

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 69 Hex Hd, 7/8"-14 ORB

1шт.

69

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-Ring

1шт.

H648857

SEAL ASSY.

KIT - Major Seal Repair (contains all seals needed to overhaul valve assembly)

1шт.
