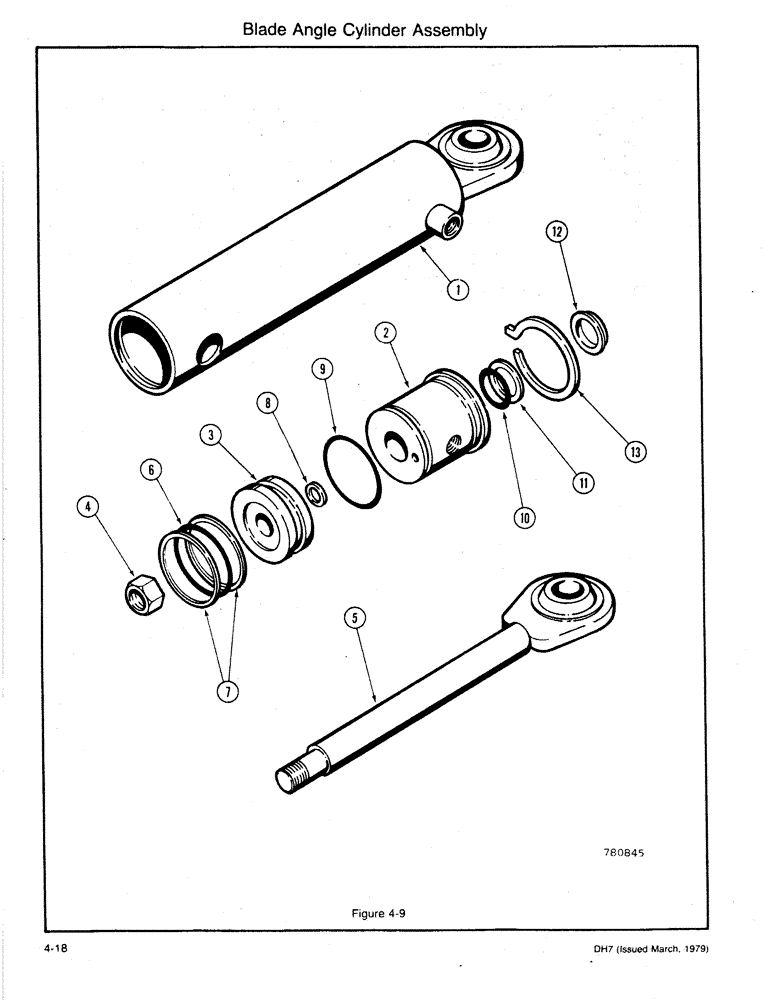

Запчасти Case DH7 (4-18) - BLADE ANGLE CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H580597

CYLINDER ASSEMBLY - Backfill Blade Angle, Includes: Ref. 1 - 13

2шт.

1

H583138

BARREL

1шт.

2

H247031

GLAND

1шт.

3

H247023

PISTON

1шт.

4

H738203

LOCK NUT

NUT - Lock

1шт.

5

H583120

ROD

- Piston

1шт.

H583112

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - Piston

1шт.

7

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - Rod Static

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - Gland Static

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

13

H207027

LOCK ASSY

WIRE - Lock

1шт.
