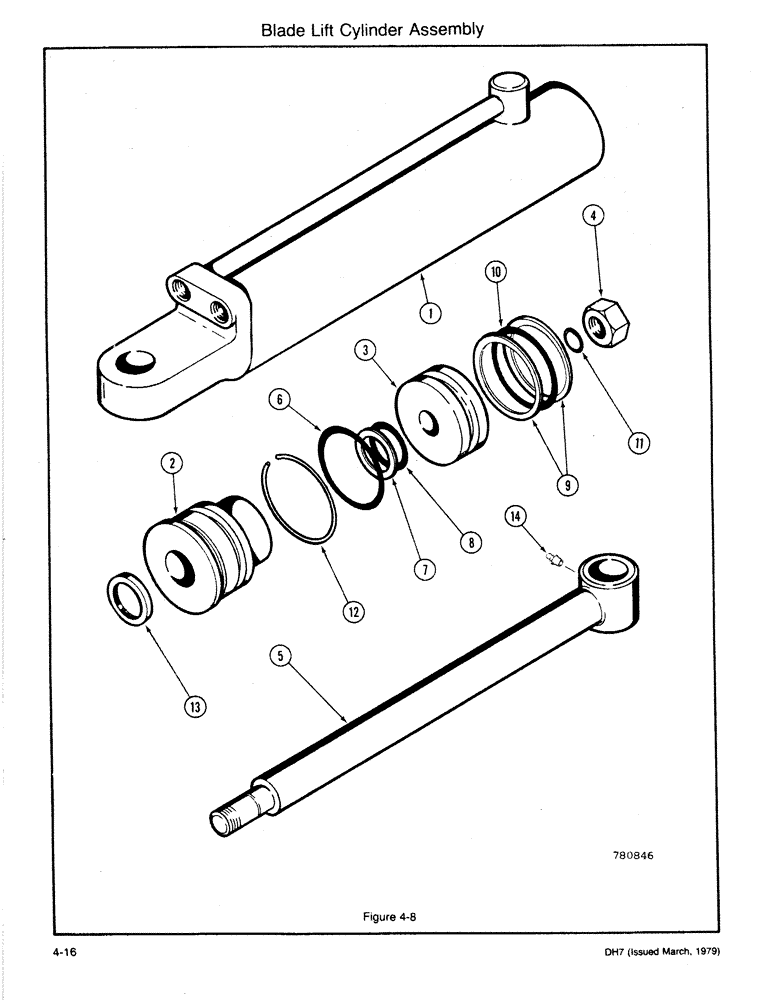

Запчасти Case DH7 (4-16) - BLADE LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H559435

CYLINDER BLOCK

CYLINDER ASSEMBLY - Backfill Blade Lift, Includes: Ref. 1 - 14

2шт.

1

H207076

SLEEVE CYLINDER

BARREL

1шт.

2

H207043

GLAND

1шт.

3

H207035

PISTON ASSY.

PISTON

1шт.

4

H223024

LOCK NUT

NUT - Lock

1шт.

5

H207084

PISTON

ROD - Piston

1шт.

H207068

SEAL

KIT - Seal Repair, Includes: Ref. 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - Gland Static

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

8

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - Piston

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - Rod Static

1шт.

12

H207027

LOCK ASSY

WIRE - Lock

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

14

H755330

FITTING

- Grease

1шт.
