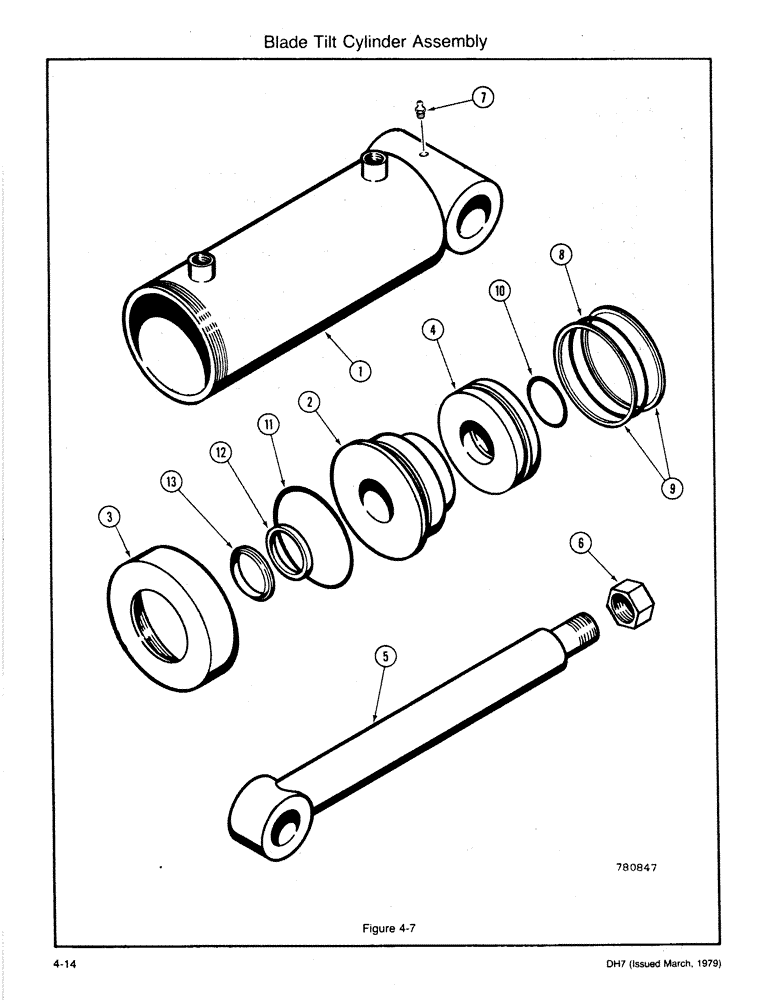

Запчасти Case DH7 (4-14) - BLADE TILT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H568444

CYLINDER ASSEMBLY - Backfill Blade Tilt, Includes: Ref. 1 - 13

2шт.

1

H242529

BARREL

1шт.

2

H254763

GLAND

1шт.

3

H242545

COLLAR

- Gland

1шт.

4

H226316

PISTON

1шт.

5

H242511

ROD - Piston

1шт.

6

H223024

LOCK NUT

NUT - Lock

1шт.

7

H745307

FITTING

- Grease

1шт.

H580530

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 8 - 13

1шт.

8

H756114

SEAL

- Piston

1шт.

9

H752030

RING

- Backup

2шт.

10

R15366

O-RING,7/8" ID x 1" OD x 1/16"

SEAL - Rod Static

1шт.

11

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - Gland Static

1шт.

12

H247809

SEAL ASSY.

SEAL - Rod

1шт.

13

H222935

WIPER SEAL

WIPER - Rod

1шт.
