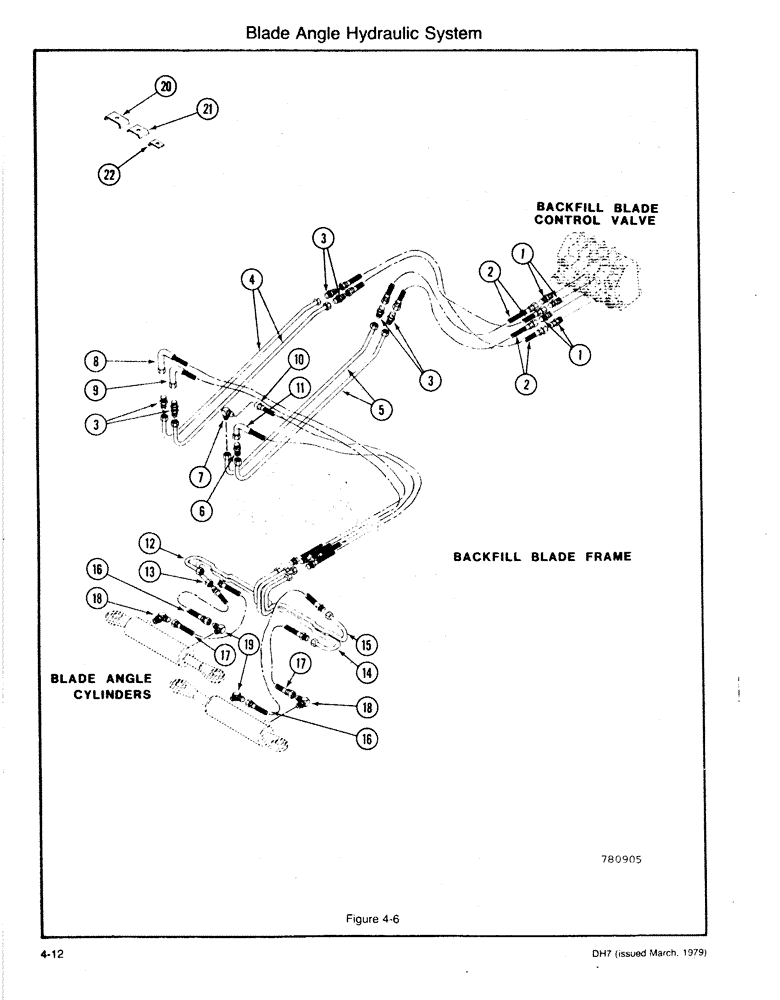

Запчасти Case DH7 (4-12) - BLADE ANGLE HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR (3/4 ORB x 9/16 JIC M)

4шт.

Use 218-5354 Connectors with Kontak Valve.

1шт.

2

H253666

HOSE ASSY.

HOSE - 1/4 x 84 (9/16 JIC Fe Sw Ends)

4шт.

Use With Front Mounted Backfill Blade.

1шт.

2

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

6.35 mm ID x 1905.00 mm, SAE 100R1

4шт.

Use With Rear Mounted Backfill Blade.

1шт.

3

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR (9/16 JIC M Ends)

6шт.

4

H642272

TUBE (3/8) 0.375" OD

2шт.

5

H645879

TUBE (3/8) 0.375" OD

2шт.

6

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

7

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degrees (9/16 JIC M Ends)

1шт.

8

H644534

HOSE & TUBE - 3/8 x 20 (9/16 JIC M x 9/16 JIC Fe Sw)

1шт.

9

H644542

HOSE & TUBE - 3/8 x 18 (9/16 JIC M x 9/16 JIC Fe Sw)

1шт.

10

H168997

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

HYDRAULC HOSE 9.52 mm ID x 381.00 mm, SAE 100R1

1шт.

11

H644526

HOSE ASSY.

HOSE & TUBE - 3/8 x 18 (9/16 JIC M x 9/16 JIC Fe Sw)

1шт.

12

H644344

TUBE (3/8) 0.375" OD

1шт.

13

H644377

TUBE,0.375" OD

(3/8)

1шт.

14

H644328

TUBE (3/8) 0.375" OD

1шт.

15

H644369

TUBE (3/8) 0.375" OD

1шт.

16

H644567

HOSE ASSY.

HOSE - 1/4 x 5.5 (9/16 JIC M x 9/16 JIC Fe Sw)

2шт.

17

H170753

HYDRAULIC HOSE,6.35 mm ID x 355.60 mm, SAE 100R1

6.35 mm ID x 355.60 mm, SAE 100R1

2шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

2шт.

19

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degrees (3/8 MP x 9/16 JIC M)

2шт.

20

H46888

CLAMP

- Tube

2шт.

21

H45468

CLAMP

- Tube

3шт.

22

H383737

CLAMP - Tube

3шт.
