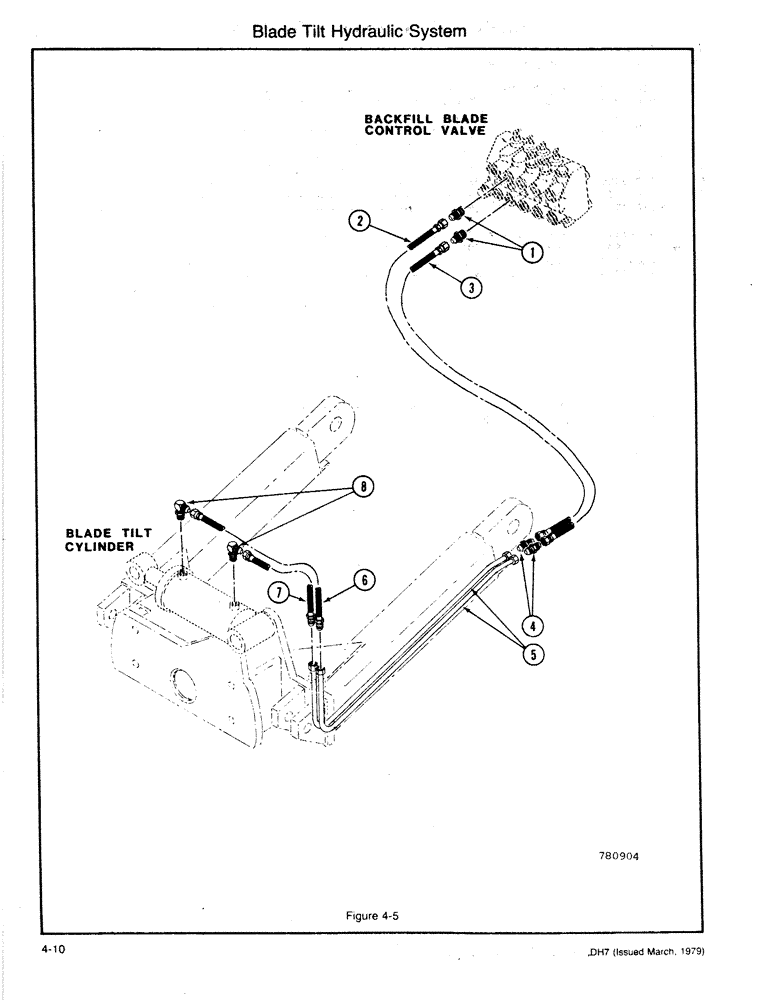

Запчасти Case DH7 (4-10) - BLADE TILT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR (3/4 ORB x 9/16 JIC M)

2шт.

Use 218-5354 Connectors with Kontak Valve.

1шт.

2

H350926

HOSE,0.25" ID x 110.00", SAE 100R1A

1шт.

Use With Front Mounted Backfill Blade.

1шт.

2

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

HOSE - 1/4 x 75 (9/16 JIC Fe Sw Ends)

1шт.

Use With Rear Mounted Backfill Blade.

1шт.

3

H253674

HOSE ASSY.

HOSE - 1/4 x 90 (9/16 JIC Fe Sw Ends)

1шт.

Use With Front Mounted Backfill Blade.

1шт.

3

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

6.35 mm ID x 1905.00 mm, SAE 100R1

1шт.

Use With Rear Mounted Backfill Blade.

1шт.

4

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR (9/16 JIC M Ends)

2шт.

5

H642272

TUBE (3/8) 0.375" OD

2шт.

6

H170753

HYDRAULIC HOSE,6.35 mm ID x 355.60 mm, SAE 100R1

6.35 mm ID x 355.60 mm, SAE 100R1

1шт.

7

H171264

HYDRAULIC HOSE,6.35 mm ID x 457.20 mm, SAE 100R1

6.35 mm ID x 457.20 mm, SAE 100R1

1шт.

8

215-5105

ELBOW - 90 degrees (9/16 ORB x 9/16 JIC M)

2шт.
