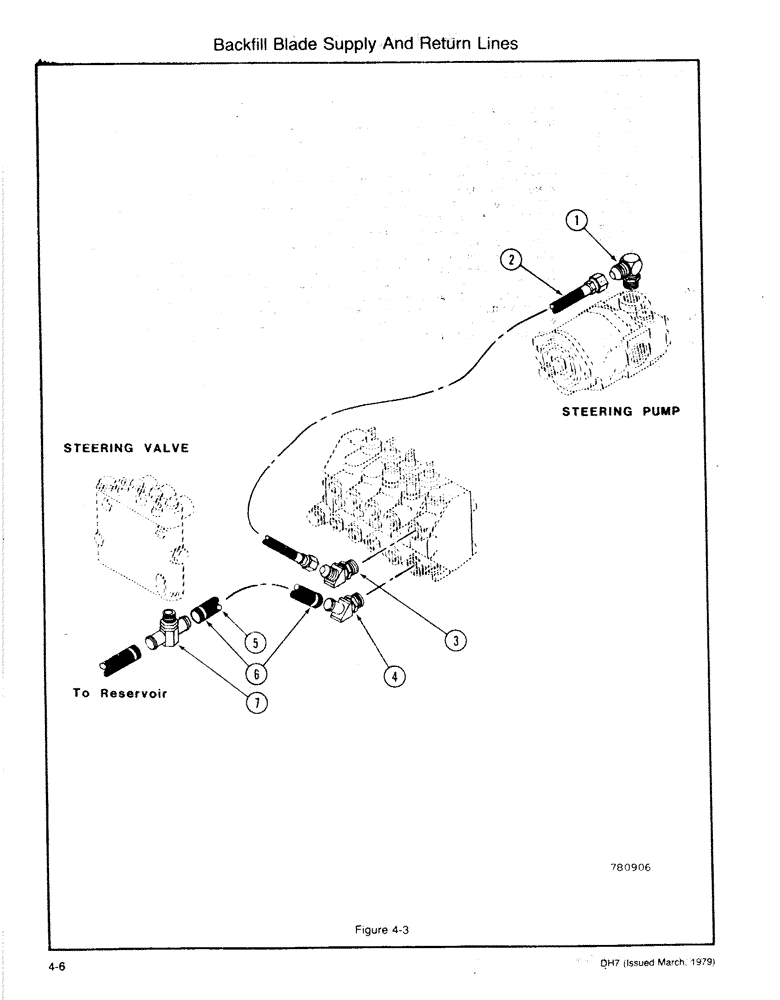

Запчасти Case DH7 (4-06) - BACKFILL BLADE SUPPLY AND RETURN LINES (35) - HYDRAULIC SYSTEMS

1

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees (7/8 ORB x 7/8 JIC M)

1шт.

2

H185165

HOSE - 1/2 x 60 (7/8 JIC Fe Sw Ends)

1шт.

3

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degrees (7/8 ORB x 7/8 JIC M)

1шт.

4

217-324

FITTING,45 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 45 degrees (7/8 ORB x 3/4 Barb)

1шт.

5

H307900

HOSE ASSY.

HOSE (3/4 x 6)

1шт.

6

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

7

H356634

TEE (3/4 ORB x 3/4 Barb x 3/4 Barb)

1шт.
