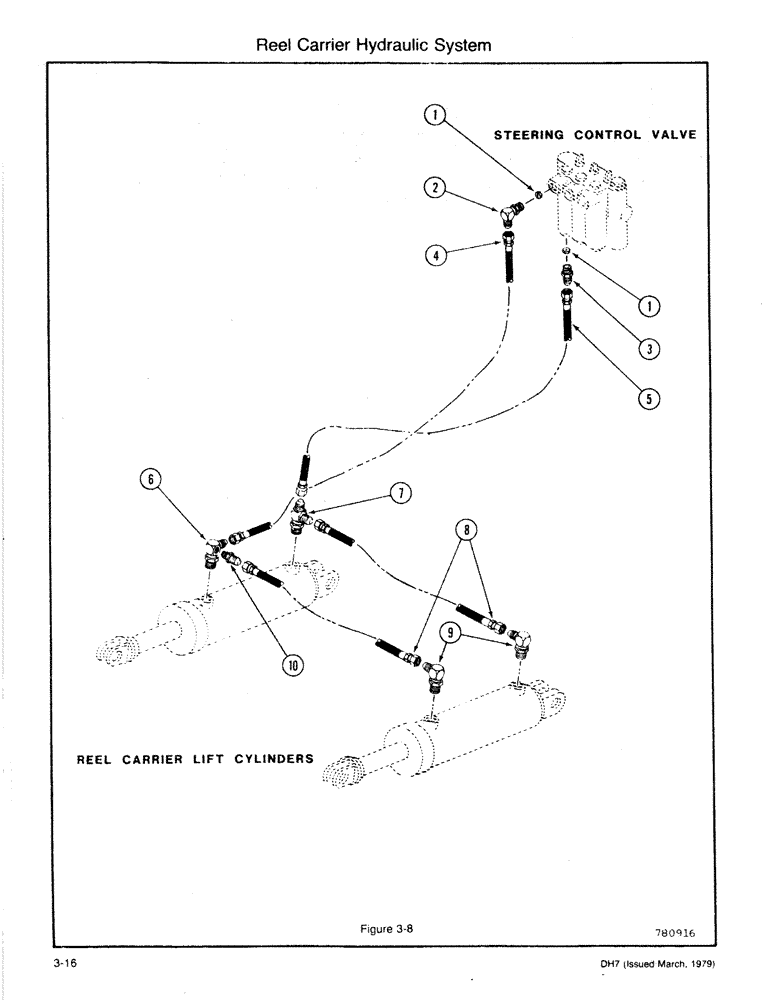

Запчасти Case DH7 (3-16) - REEL CARRIER HYDRALULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H165654

ORIFICE

(0.55)

2шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JIC M)

1шт.

4

H373647

HOSE

- 1/4 x 130 (9/16 JIC Fe Sw Ends)

1шт.

5

H350926

HOSE,0.25" ID x 110.00", SAE 100R1A

1шт.

6

H314351

ELBOW - Special

1шт.

7

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

(9/16 JIC M x 3/4 ORB x 9/16 ORB)

1шт.

8

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

6.35 mm ID x 609.60 mm, SAE 100R1

2шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 9/16 JIC M)

2шт.

10

214-443

CONNECTOR (1/4 MP x 9/16 JIC M)

1шт.
