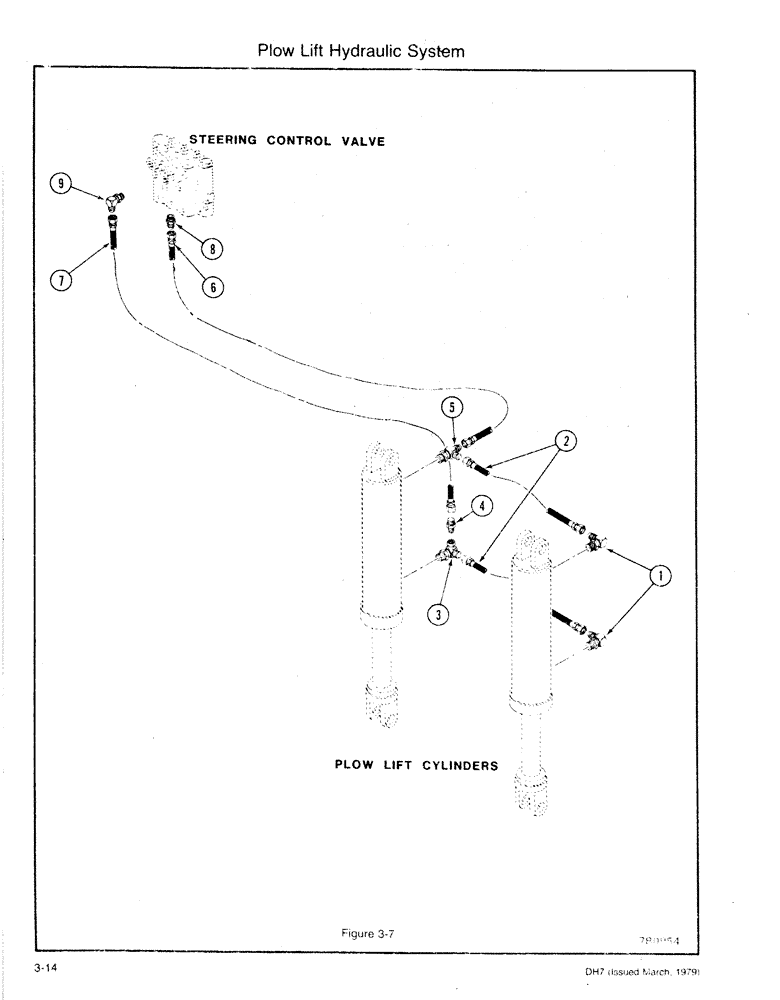

Запчасти Case DH7 (3-14) - PLOW LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 9/16 JIC M)

2шт.

2

H248989

HYDRAULIC HOSE,6.35 mm ID x 685.40 mm, SAE 100R1

6.35 mm ID x 685.40 mm, SAE 100R1

2шт.

3

H314351

TEE (3/4 ORB x 9/16 JIC M x 1/4 Fe Pipe)

1шт.

4

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR (9/16 JIC M x 1/4 M Pipe)

1шт.

5

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

(3/4 ORB x 9/16 JIC M x 9/16 JIC M)

1шт.

6

H248989

HYDRAULIC HOSE,6.35 mm ID x 685.40 mm, SAE 100R1

6.35 mm ID x 685.40 mm, SAE 100R1

1шт.

7

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JIC M)

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

1шт.
