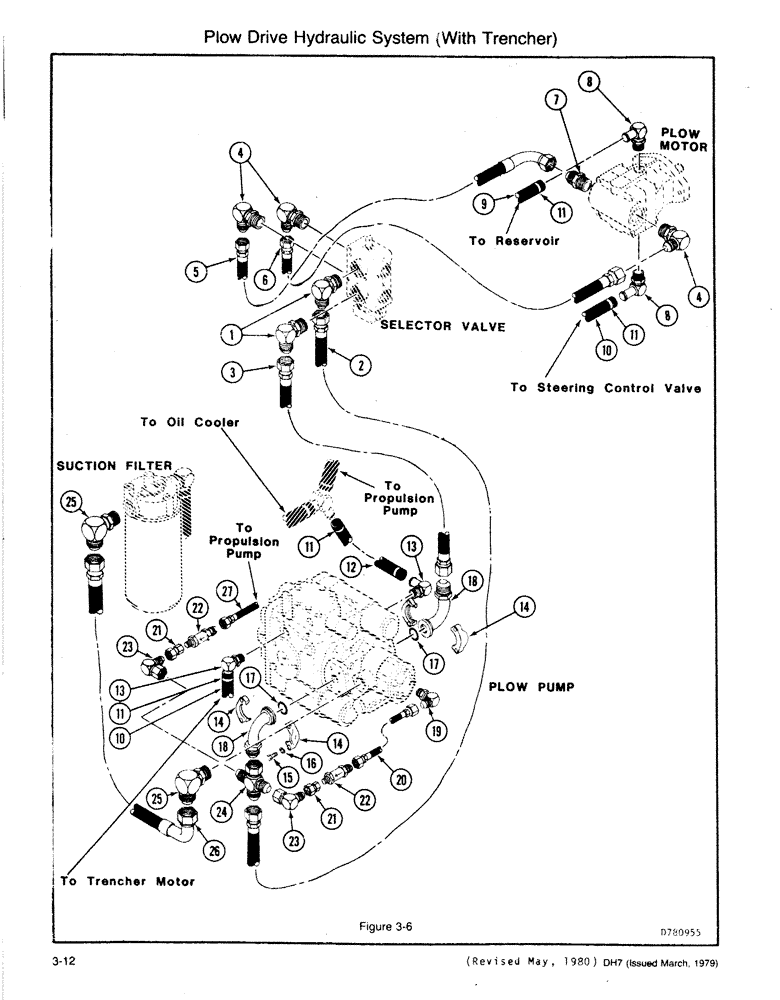

Запчасти Case DH7 (3-12) - PLOW DRIVE HYDRAULIC SYSTEM (WITH TRENCHER) (35) - HYDRAULIC SYSTEMS

1

217-5110

ELBOW - 90 degrees (1-5/16 ORB x 1-5/16 JIC M)

2шт.

2

720-17505

HOSE ASSY.

HOSE - 1 x 600 mm (1-5/16 JIC Fe Sw Ends)

1шт.

3

720-17401

HOSE ASSY.

HOSE - 1 x 900 mm (1-5/16 JIC Fe Sw Ends)

1шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-1/16 JIC M x 1-5/16 ORB)

3шт.

5

H382044

HOSE - 3/4 x 128 (1-1/16 JIC Fe Sw x 90 degrees Tube)

1шт.

6

H382036

HOSE - 3/4 x 115 (1-1/16 JIC Fe Sw Ends)

1шт.

7

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR (1-1/16 JIC M x 1-5/16 ORB)

1шт.

8

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees (1-1/16 ORB x 3/4 Barb)

2шт.

9

H384180

HOSE - 3/4 x 125

1шт.

10

H337899

HOSE ASSY.

HOSE - 3/4 x 84

2шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

8шт.

12

H309054

HOSE

- 3/4 x 10-1/2

1шт.

13

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 degrees (7/8 ORB x 3/4 Barb)

2шт.

14

A12306

FLANGE

- Split, Includes: Ref. 15 and 16

4шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

17

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2шт.

18

H342915

ELBOW

- 90 degrees (1-5/16 JIC M x 1 Flange)

2шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 3/4 JIC M)

1шт.

20

H166694

HYDRAULIC HOSE,12.70 mm ID x 305.00 mm, SAE 100R1

12.70 mm ID x 305.00 mm, SAE 100R1

1шт.

21

218-1560

HYD CONNECTOR,37º, Sw, 7/16"-20 x 3/8"-18 NPTF

CONNECTOR (3/4 JIC Fe Sw x 3/8 Fe Pipe)

2шт.

22

H643528

VALVE, CHECK

VALVE - Check (6 psi)

2шт.

23

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degrees (3/4 JIC M x 1-1/16 JIC Fe Sw)

2шт.

24

D54111

CROSS

(1-5/16 JIC Fe Sw x 1-5/16 JIC M x 1-1/16 JIC M x 1-1/16 JIC M)

1шт.

25

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/8 JIC M x 1-5/16 ORB)

2шт.

26

H379735

HOSE - 1-1/4 x 33 (1-5/8 JIC Fe Sw x 90 degrees Tube)

1шт.

27

W11743

HOSE - 1/2 x 37 (3/4 JIC Fe Sw Ends)

1шт.
