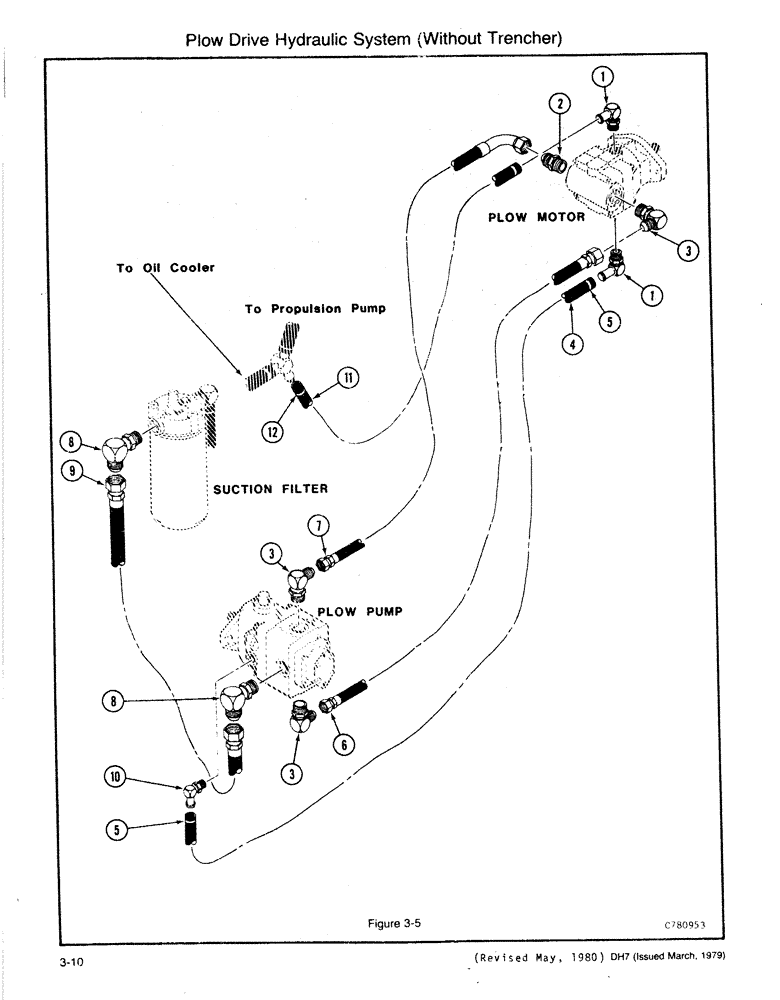

Запчасти Case DH7 (3-10) - PLOW DRIVE HYDRAULIC SYSTEM (WITHOUT TRENCHER) (35) - HYDRAULIC SYSTEMS

1

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees (1-1/16 ORB x 3/4 Barb)

2шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR (1-5/16 ORB x 1-1/16 JIC M)

1шт.

3

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/16 ORB x 1-1/16 JIC M)

3шт.

4

H382010

HOSE

(3/4 x 132), Includes: Ref. 5

1шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

6

H382036

HOSE - 3/4 x 115 (1-1/16 JIC Fe Sw Ends)

1шт.

7

H382044

HOSE - 3/4 x 128 (1-1/16 JIC Fe Sw x 1-1/16 JIC Fe Sw - 90 degrees Tube

1шт.

8

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º (1-5/16 JIC M x 1-5/16 ORB)

2шт.

9

H291112

HYDRAULIC HOSE,25.40 mm ID x 1066.80 mm, SAE 100R1

(1-5/16 JIC Fe Sw Ends) 25.40 mm ID x 1066.80 mm, SAE 100R1

1шт.

10

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degrees (3/4 ORB x 3/4 Barb)

1шт.

11

H384180

HOSE - 3/4 x 125

1шт.

12

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.
