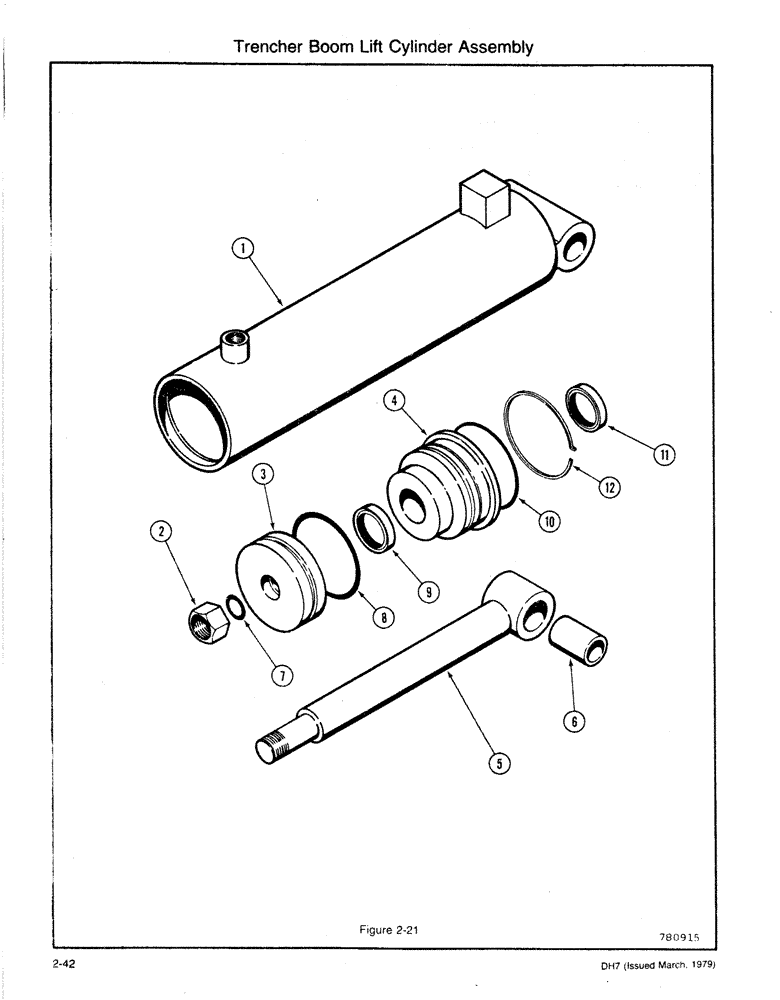

Запчасти Case DH7 (2-42) - TRENCHER BOOM LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H567701

CYLINDER BLOCK

CYLINDER ASSEMBLY - Trencher Boom Lift, Includes: Ref. 1 - 12

1шт.

1

H571125

CYLINDER

BARREL

1шт.

2

H223198

NUT

- Lock

1шт.

3

H255232

PISTON

1шт.

4

H223248

CYLINDER BLOCK

GLAND

1шт.

5

H571117

ROD

- Piston

1шт.

6

H223222

BUSHING

- Rod

1шт.

H571109

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

O RING - Rod Statci Seal

1шт.

8

NSS

NOT SOLD SEPARAT

O RING - Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

10

NSS

NOT SOLD SEPARAT

O RING - Gland Static Seal

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - Lock

1шт.
