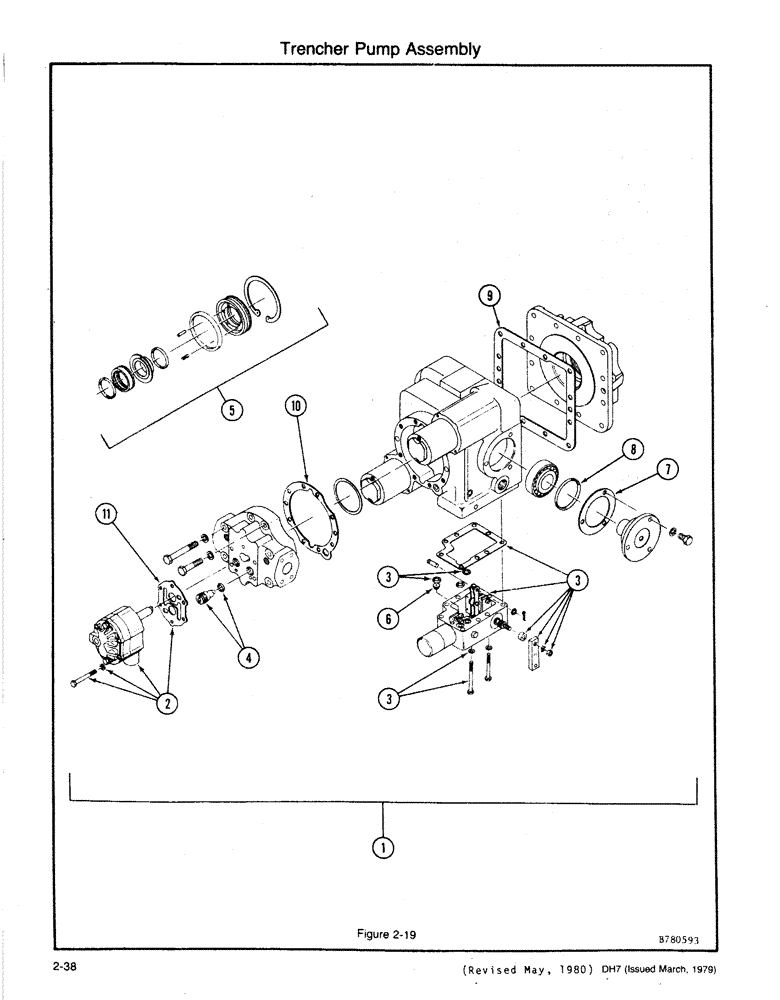

Запчасти Case DH7 (2-38) - TRENCHER PUMP ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

H638460

PUMP

ASSY - Accessory, Includes: Ref. 2 - 11

1шт.

2

H648667

PUMP

KIT - Charge Pump

1шт.

3

D80528

VALVE

KIT - Control Valve

1шт.

4

F89256

VALVE, CHECK

KIT - Check Valve

1шт.

5

R29533

SEAL KIT

KIT - Seal

1шт.

6

S113621

PLUG

1шт.

7

F23142

SHIM

GASKET

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

2шт.

9

F23152

GASKET

1шт.

10

F23117

GASKET,0.25mm Thk

1шт.

11

R26262

GASKET

(is included in H648667 Kit)

1шт.
