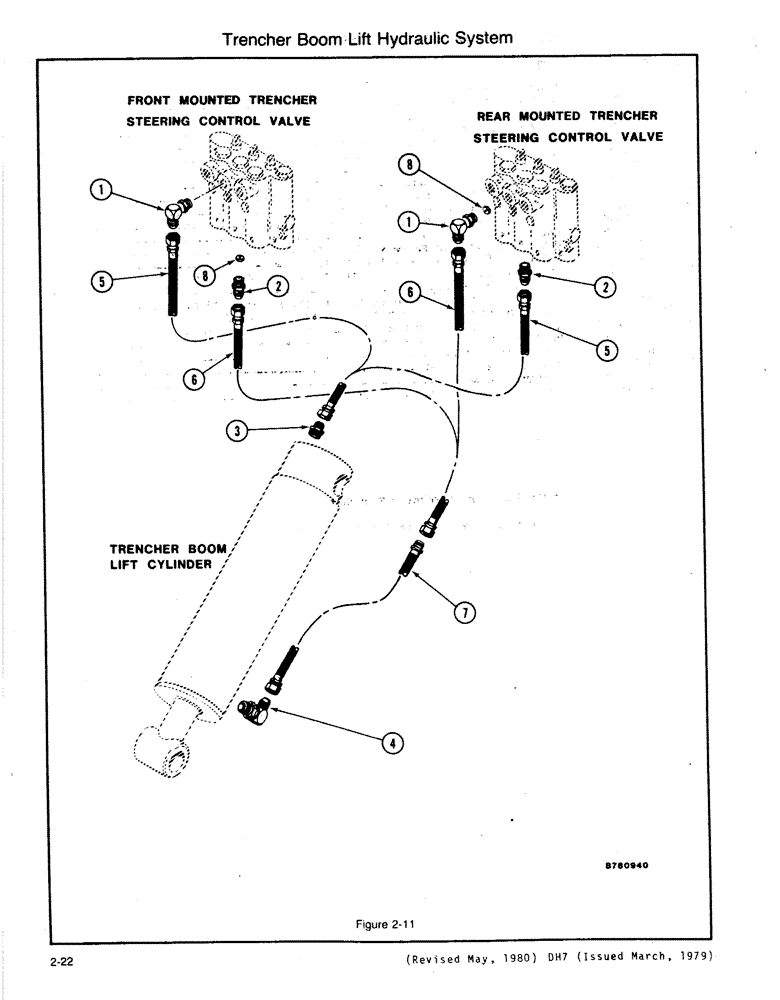

Запчасти Case DH7 (2-22) - TRENCHER BOOM LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JIC M)

1шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR (3/4 ORB x 9/16 JIC M) Another connector used (NOT A SUB) Part 218-5148

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 9/16 JIC M)

1шт.

5

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

1шт.

Used with Front Mounted Trencher

1шт.

5

H172965

HYDRAULIC HOSE,6.35 mm ID x 939.60 mm, SAE 100R1

6.35 mm ID x 939.60 mm, SAE 100R1

1шт.

Used with Rear Mounted Trencher

1шт.

6

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

1шт.

Used with Front Mounted Trencher

1шт.

6

H172965

HYDRAULIC HOSE,6.35 mm ID x 939.60 mm, SAE 100R1

6.35 mm ID x 939.60 mm, SAE 100R1

1шт.

Used with Rear Mounted Trencher

1шт.

7

H168625

HYDRAULIC HOSE,6.35 mm ID x 381.00 mm, SAE 100R1

6.35 mm ID x 381.00 mm

1шт.

8

H746875

SCREW

PLATE - Orifice (.043)

1шт.
