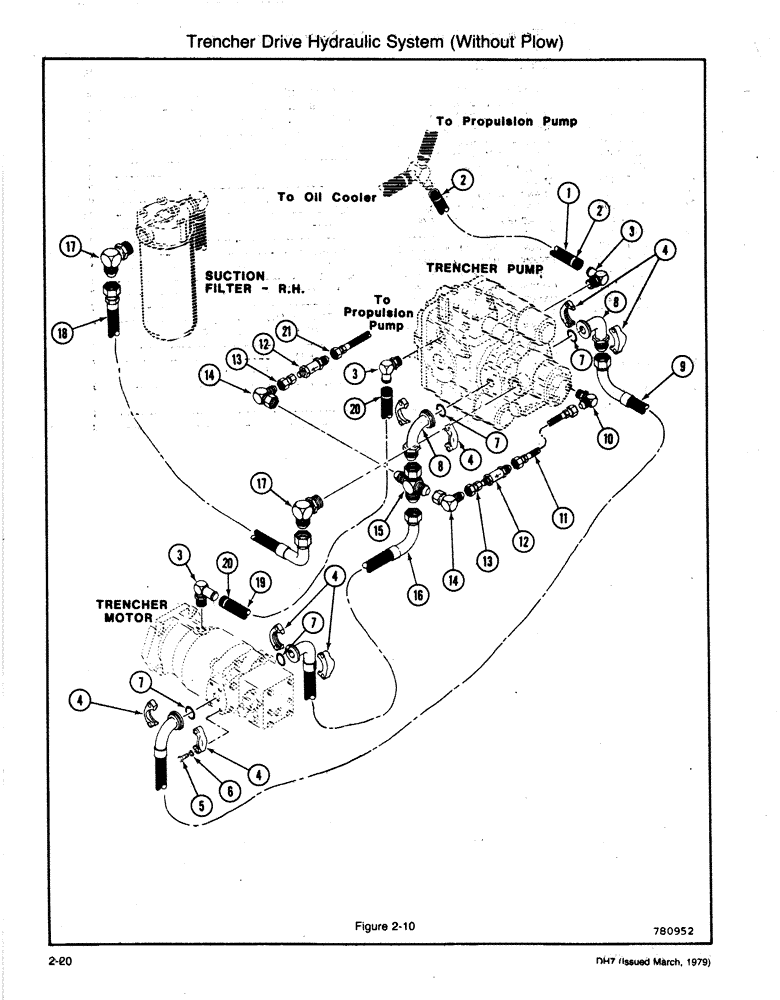

Запчасти Case DH7 (2-20) - TRENCHER DRIVE HYDRAULIC SYSTEM (WITHOUT PLOW) (35) - HYDRAULIC SYSTEMS

1

H355180

HOSE,10.00", SAE 30R2

Okay to Use D55911 Cut to Length, Includes: Ref. 2 10.00", SAE 30R2

1шт.

2

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

3

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 degrees (7/8 ORB x 3/4 Barb)

2шт.

4

A12306

FLANGE

- Split, Includes: Ref. 5 and 6

8шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

7

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

O RING

4шт.

8

H342915

ELBOW

- 90 degrees (1" Flange x 1-5/16 JIC M)

2шт.

9

H382887

HOSE ASSY.

HOSE AND TUBE - 1 x 2475 mm (1-1/16 JIC Fe Sw x 90 degrees Flange)

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 3/4 JIC M)

1шт.

11

H166694

HYDRAULIC HOSE,12.70 mm ID x 305.00 mm, SAE 100R1

12.70 mm ID x 305.00 mm, SAE 100R1

1шт.

12

H643528

VALVE, CHECK

VALVE - Check (6 psi)

2шт.

13

218-1560

HYD CONNECTOR,37º, Sw, 7/16"-20 x 3/8"-18 NPTF

CONNECTOR (3/4 JIC Fe Sw x 3/8 Fe Pipe)

2шт.

14

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degrees (3/4 JIC M x 1-1/16 JIC Fe Sw)

2шт.

15

D54111

CROSS

(1-5/16 JIC M x 1-5/16 JIC Fe Sw x 1-1/16 JIC M x 1-1/16 JIC M)

1шт.

16

H381566

HOSE ASSY.

HOSE AND TUBE - 1 x 2600 mm (1-5/16 JIC Fe Sw x 90 degrees Flange)

1шт.

Used for Front Mounted Trencher

1шт.

16

H380147

HOSE AND TUBE 1 x 114.2 (1-5/16 JIC Fe Sw x 90 degrees Flange)

1шт.

Used for Rear Mounted Trencher

1шт.

17

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/16 ORB x 1-5/8 JIC M)

2шт.

18

H379735

HOSE AND TUBE - 1-1/4 x 33 (1-5/8 JIC Fe Sw Ends)

1шт.

19

H337899

HOSE ASSY.

HOSE (3/4 x 84)

1шт.

Used for Front Mounted Trencher

1шт.

19

H381962

HOSE

(3/4 x 3000 mm), Includes: Ref. 20

1шт.

Used for Rear Mounted Trencher

1шт.

20

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

21

W11743

HOSE - 1/2 x 37 (3/4 JIC Fe Sw Ends)

1шт.
