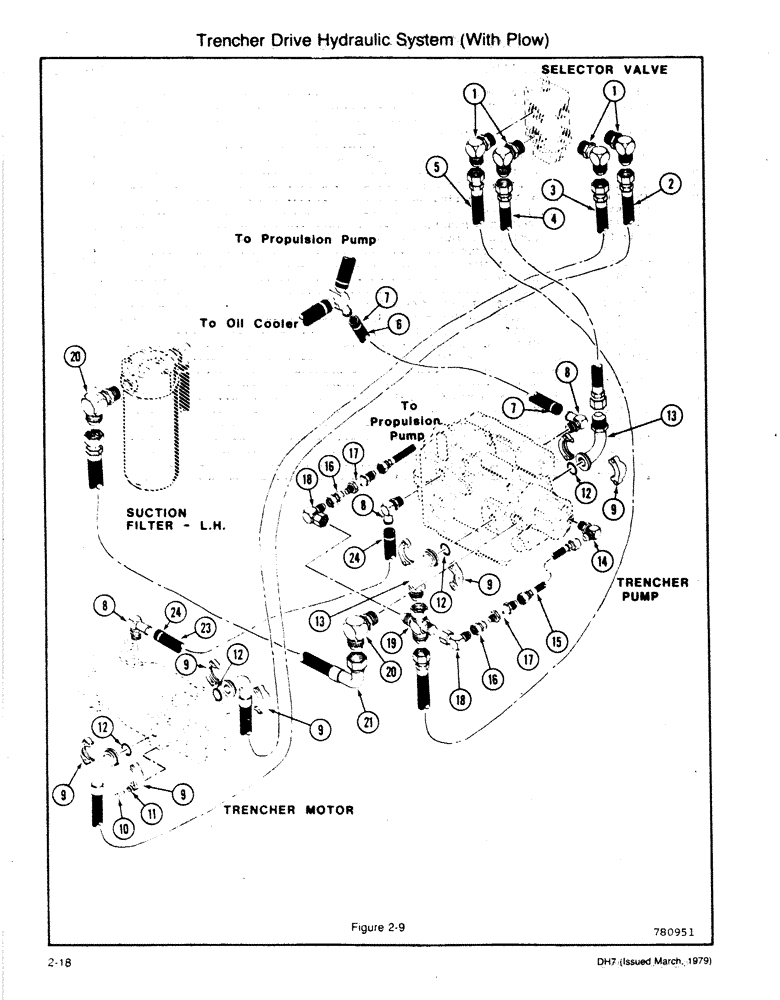

Запчасти Case DH7 (2-18) - TRENCHER DRIVE HYDRAULIC SYSTEM (WITH PLOW) (35) - HYDRAULIC SYSTEMS

1

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º (1-5/16 ORB x 1-5/16 JIC M)

4шт.

2

H382887

HOSE ASSY.

HOSE - 1 x 2475 mm (1-5/16 JIC Fe Sw x 1 Flange)

1шт.

3

H381566

HOSE ASSY.

HOSE - 1 x 2600 mm (1-5/16 JIC Fe Sw x 1 Flange)

1шт.

4

720-17505

HOSE ASSY.

HOSE - 1 x 600 mm (1-5/16 JIC Fe Sw Ends)

1шт.

5

720-17401

HOSE ASSY.

HOSE - 1 x 900 mm (1-5/16 JIC Fe Sw Ends)

1шт.

6

H309054

HOSE

- 3/4 x 10 1/2, Includes: Ref. 7

1шт.

7

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

8

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 degrees (7/8 ORB x 3/4 Barb)

3шт.

9

A12306

FLANGE

- Split, Includes: Ref. 10 and 11

8шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

12

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

O RING

4шт.

13

H342915

ELBOW

- 90 degrees (1-5/16 JIC M x 1 Flange)

2шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 3/4 JIC M)

1шт.

15

H166694

HYDRAULIC HOSE,12.70 mm ID x 305.00 mm, SAE 100R1

12.70 mm ID x 305.00 mm, SAE 100R1

1шт.

16

218-1560

HYD CONNECTOR,37º, Sw, 7/16"-20 x 3/8"-18 NPTF

CONNECTOR (3/4 JIC Fe Sw x 3/8 Fe Pipe)

2шт.

17

H643528

VALVE, CHECK

VALVE - Check (6 psi)

2шт.

18

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degrees (3/4 JIC M x 1-1/16 JIC Fe Sw)

2шт.

19

D5411

CROSS (1-5/16 JIC Fe Sw x 1-5/16 JIC M x 1-1/16 JIC M x 1-1/16 JIC M)

1шт.

20

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/8 JIC M x 1-5/16 ORB)

2шт.

21

H379735

HOSE - 1 1/4 x 33 (1-5/8 JIC Fe Sw x 1-5/8 JIC Fe Sw - 90 degrees Tube

1шт.

23

H337899

HOSE ASSY.

HOSE - 3/4 x 84, Includes: Ref. 24

1шт.

24

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.
