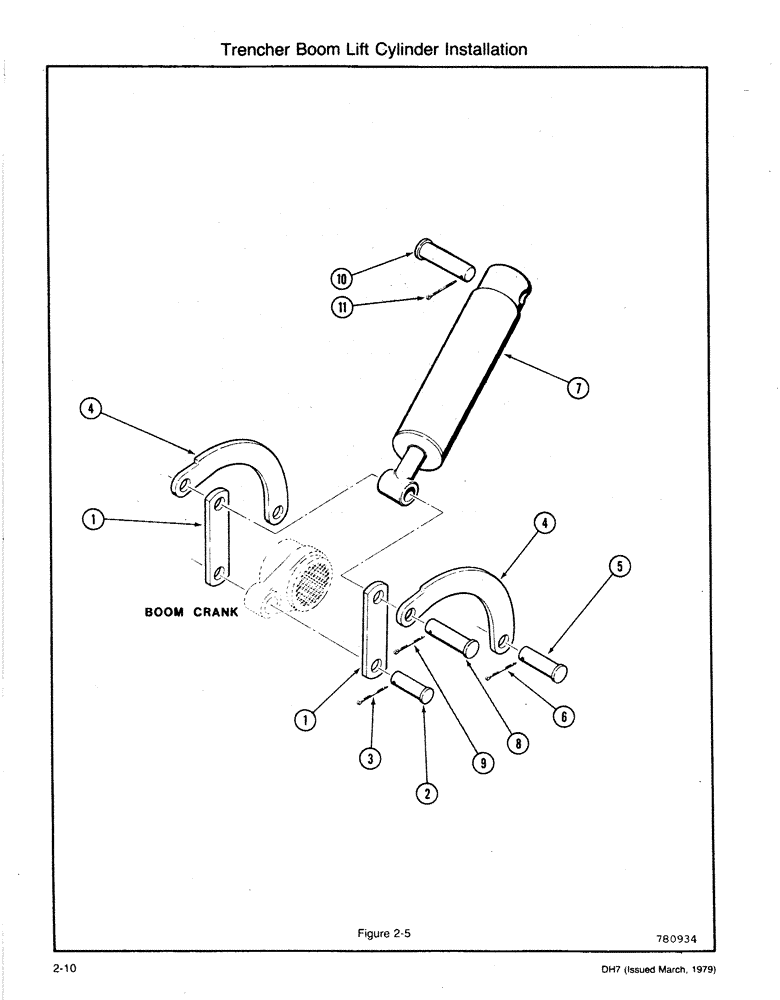

Запчасти Case DH7 (2-10) - TRENCHER BOOM LIFT CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H225250

DRAG LINK

LINK - Straight, Includes: Ref. 2 and 3

2шт.

2

H218271

PIN

- Clevis

1шт.

3

132-350

COTTER PIN,1/4" x 1 5/8"

PIN, Split (Cotter), 1/4" x 1-5/8"

1шт.

4

H213652

DRAG LINK

LINK - Curved, Includes: Ref. 5 and 6

2шт.

5

H218263

AXLE PIN

PIN - Clevis

1шт.

6

132-350

COTTER PIN,1/4" x 1 5/8"

PIN, Split (Cotter), 1/4" x 1-5/8"

1шт.

7

H567701

CYLINDER BLOCK

CYLINDER Assembly - Trencher Boom Lift (See Figure 2-42), Includes: Ref. 8 - 11

1шт.

8

H257048

PIN,28.5mm OD x 146.05mm L

- Clevis

1шт.

9

132-350

COTTER PIN,1/4" x 1 5/8"

PIN, Split (Cotter), 1/4" x 1-5/8"

1шт.

10

H218255

PIN

- Clevis

1шт.

11

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.
