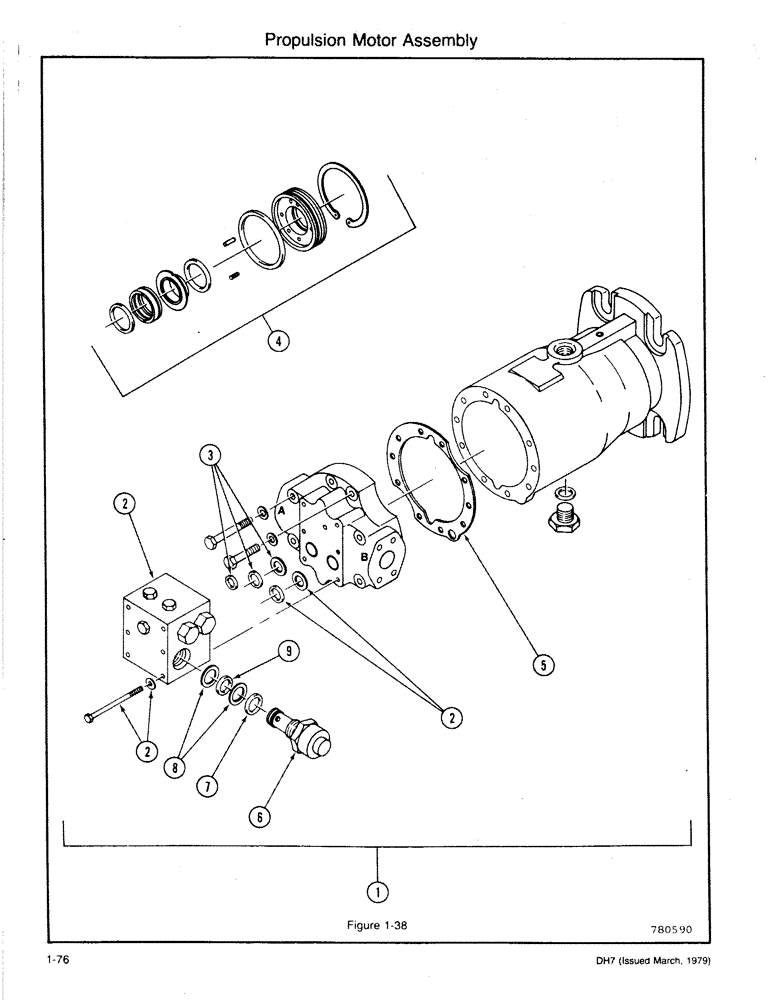

Запчасти Case DH7 (1-76) - PROPULSION MOTOR ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

H647172

MOTOR HOUSING

MOTOR ASSY - Propulsion, Includes: Ref. 2 - 9

1шт.

2

R29543

HYDRAULIC VALVE

KIT - Manifold Valve

1шт.

3

R29539

SEAL ASSY.

KIT - Seal

1шт.

4

R29533

SEAL KIT

KIT - Seal

1шт.

5

F23117

GASKET,0.25mm Thk

1шт.

6

H648691

LOCK VALVE

VALVE - High Pressure Relief (5000 psi)

2шт.

7

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

4шт.

8

A16860

RING

- Backup

4шт.

9

D063414

O-RING

2шт.
