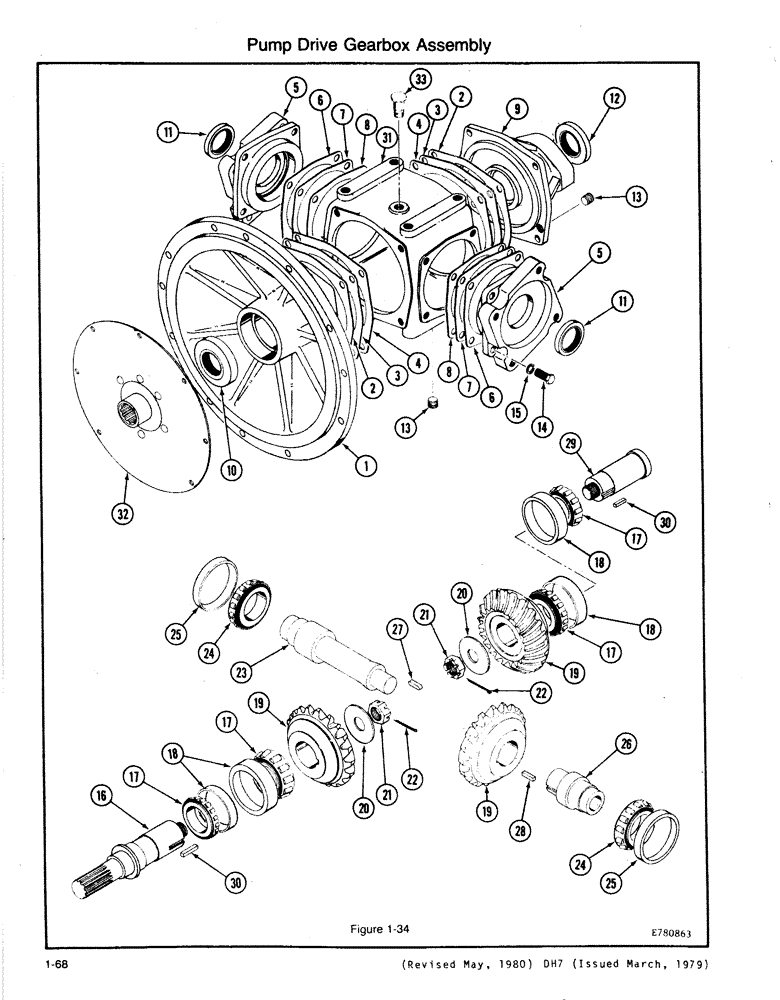

Запчасти Case DH7 (1-68) - PUMP DRIVE GEARBOX ASSEMBLY (35) - HYDRAULIC SYSTEMS

H648097

PUMP

DRIVE ASSEMBLY (1.19:1 ratio), Includes: Ref. 1 - 33

1шт.

1

H386029

ADAPTER - Engine

1шт.

2

H375535

SHIM

- Fiber

1шт.

3

H375543

SHIM

- Aluminum

1шт.

4

H375550

SHIM

- Aluminum

1шт.

5

H374975

COVER - Side

2шт.

6

H375501

SHIM,.005" Thk

Fiber .005" Thk

1шт.

7

H375519

SHIM,.007" Thk

Aluminum .007" Thk

1шт.

8

H375527

SHIM

- Aluminum

1шт.

9

H386128

ENDBELL

1шт.

10

H758383

SEAL

- Special Hi Temp

1шт.

11

H753087

SEAL

SEAL

2шт.

12

H758391

SEAL

1шт.

13

221-1849

PLUG

(3/8 - Pipe)

2шт.

14

164-562

HEX SOC SCREW,Btn Hd, 7/16"-14 x 1 1/4"

BOLT - Hex Hd (7/16 x 1-1/4 NC)

16шт.

15

192-407

LOCK WASHER,7/16"

7/16"

16шт.

16

H386136

SHAFT

1шт.

17

G57452

ROLLER BEARING

CONE - Bearing

4шт.

18

G57451

BEARING, CUP

CUP - Bearing

4шт.

19

GEAR SET - Spiral Bevel (1.33:1 ratio) (order H648089)

1шт.

H648089

GEAR WHEEL

GEAR SET - Spiral Bevel (1.19:1 ratio)

1шт.

20

H386193

WASHER

2шт.

21

H386219

NUT

- Hex (1" - 20 UNEF)

2шт.

23

H386144

SHAFT

1шт.

24

02102-CS

CONE - Bearing

2шт.

Ref. 24 is an alpha O2102CS subs to 567846R91.

1шт.

25

02125-CS

CUP - Bearing

2шт.

Ref.25 is an alpha O2125CS substo 567845R1.

1шт.

26

H386151

BUSHING

1шт.

27

H375584

KEY

(1/4 Sq x 1-3/32 - Sq End - Hard)

1шт.

28

H386235

KEY

(1/4 Sq x 1-3/32 - Rd End - Hard)

1шт.

29

H386169

SHAFT

1шт.

30

H386243

KEY

(3/8 x 5/16 x 1 Hard)

2шт.

31

H374959

HOUSING

1шт.

32

H641472

DRIVE ASSY.

PLATE - Drive

1шт.

33

D57822

BREATHER

1шт.

The 1.19:1 ratio is the only assembly available, part is H648089.

1шт.

22

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.
