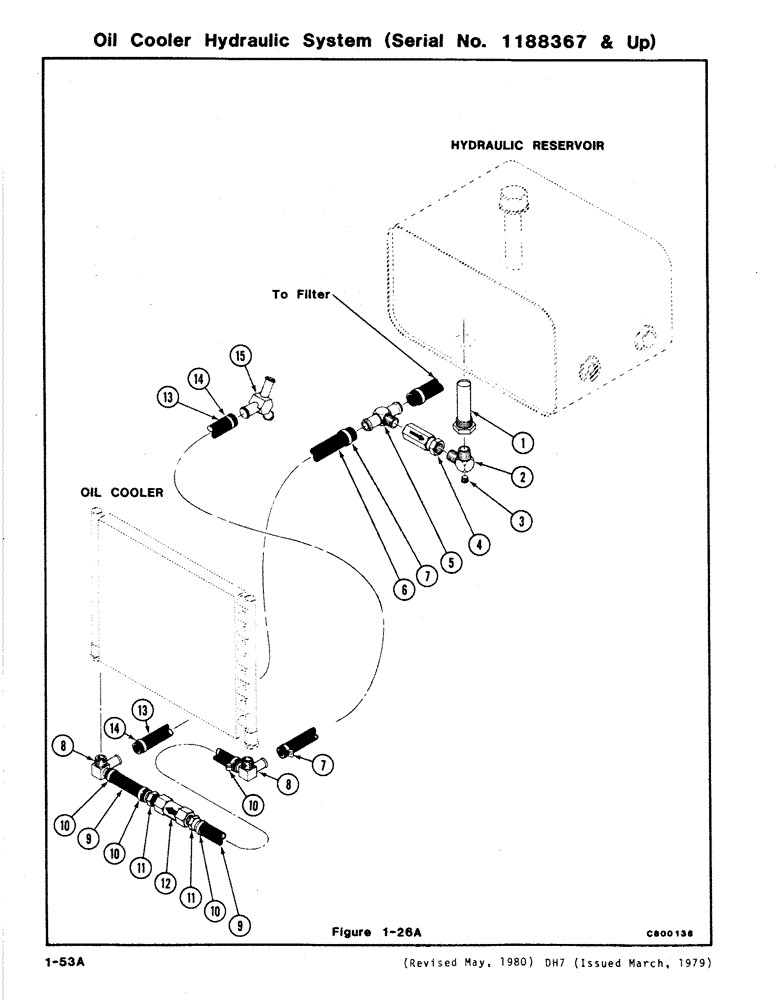

Запчасти Case DH7 (1-53A) - OIL COOLER HYDRAULIC SYSTEM (SERIAL NO. 1188367 AND UP) (35) - HYDRAULIC SYSTEMS

1

H151399

FILTER STRAINER

SCREEN - Strainer

1шт.

2

H382796

ELBOW - Special 90 degrees

1шт.

3

221-12

PLUG,Sq Hd, 1/4"-18

- Pipe (1/4)

1шт.

4

H643510

VALVE - Check (3 psi)

1шт.

5

R24282

TEE (1 Barb x 1 MP)

1шт.

6

D28888

LARGE HOSE

HOSE (1 x 33), Includes: Ref. 7

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose

2шт.

8

H384081

TEE - Special (1 MTPF x 1 Barb x 1 Barb)

2шт.

9

L53565

HOSE ASSY.

HOSE - (1 x 8.7), Includes: Ref. 10

2шт.

Ref. 9 another hose used, not a sub P/N H415471.

1шт.

10

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose

4шт.

11

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

CONNECTOR (3/4 MP x 1 Barb)

2шт.

12

R24281

LOCK VALVE

VALVE - Relief (35 psi)

1шт.

13

H69278

HOSE (1 x 42), Includes: Ref. 14

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose

2шт.

15

H339747

FITTING

- Y (1 Barb x 3/4 Barb x 3/4 Barb)

1шт.
