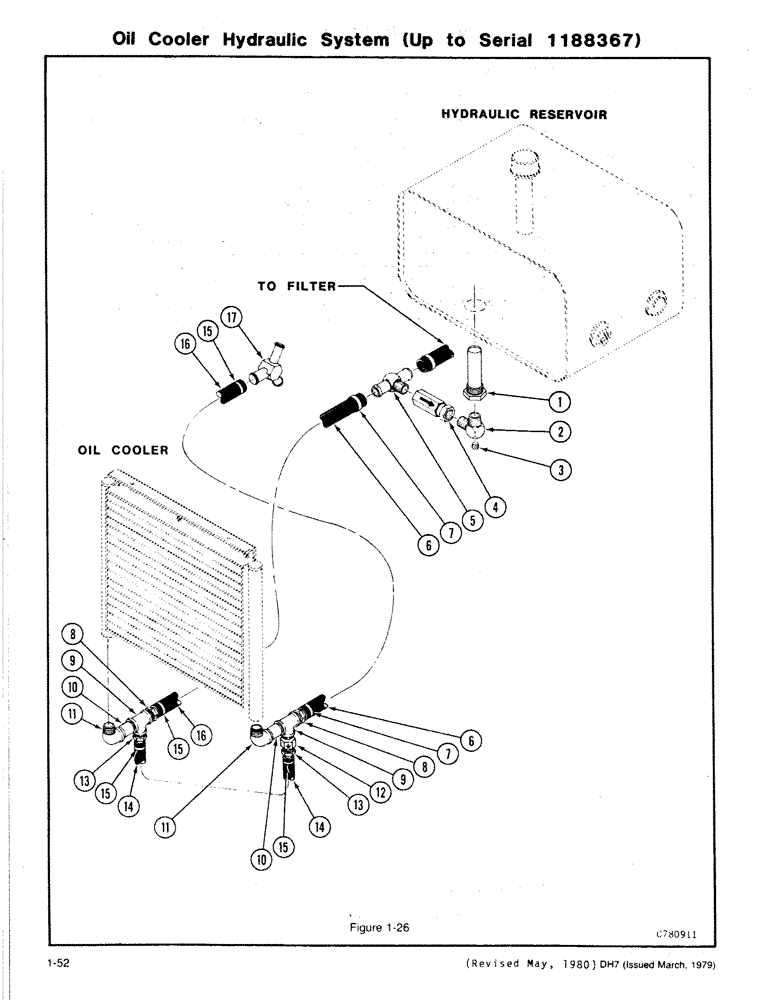

Запчасти Case DH7 (1-52) - OIL COOLER HYDRAULIC SYSTEM (UP TO SERIAL NO. 1188367) (35) - HYDRAULIC SYSTEMS

1

H151399

FILTER STRAINER

SCREEN - Strainer

1шт.

2

H382796

ELBOW - 90 degrees Special

1шт.

3

221-12

PLUG,Sq Hd, 1/4"-18

- Pipe (1/4)

1шт.

4

H643510

VALVE - Check (3 psi)

1шт.

5

R24282

TEE (1 Barb x 1 Barb x 1 MP)

1шт.

6

D28888

LARGE HOSE

HOSE (1 x 33), Includes: Ref. 7

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose

2шт.

8

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR (1 Barb x 1 MP)

2шт.

9

221-457

TEE,Pipe, 1" NPT x 3/4" NPT Br

- Pipe (1 x 1 x 3/4)

2шт.

10

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - Close (1)

2шт.

11

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- 90 degrees Street (1)

2шт.

12

H627513

VALVE

- Bypass (20 psi)

1шт.

13

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

CONNECTOR (3/4 MP x 1 Barb)

2шт.

14

H34678

HOSE ASSY.

HOSE (1 x 13-1/2), Includes: Ref. 15

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose

4шт.

16

H69278

HOSE (1 x 42)

1шт.

17

H339747

FITTING

- "Y" (1 Barb x 3/4 Barb x 3/4 Barb)

1шт.
