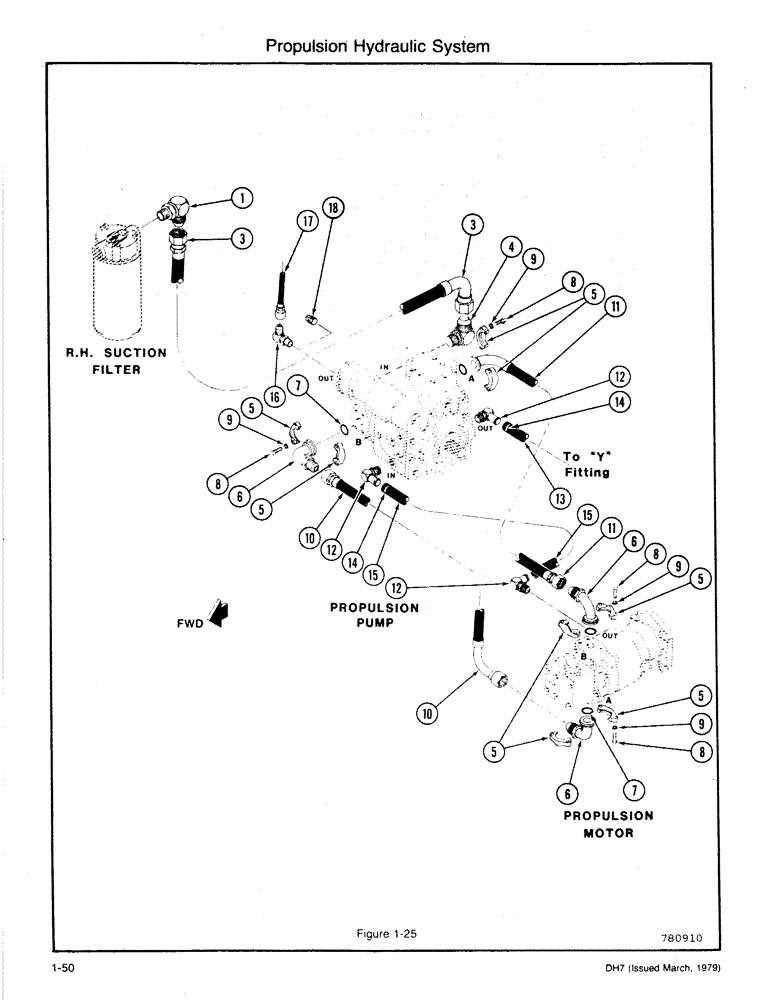

Запчасти Case DH7 (1-50) - PROPULSION HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/8 JIC M x 1-5/16 ORB)

1шт.

3

H379735

HOSE - 1-1/4 x 33 (1-5/8 JIC Fe Sw Both Ends)

1шт.

4

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/8 JIC M x 1-5/16 ORB)

1шт.

5

A12306

FLANGE

- Split

8шт.

6

H342915

ELBOW

ADAPTER - Flange

3шт.

7

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

O RING

4шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

10

H385708

HOSE - 1 x 39 (1-5/16 JIC Fe Sw x 1 Flange)

1шт.

11

H380139

HOSE - 1 x 42 (1-5/16 JIC Fe Sw x 1 Flange)

1шт.

12

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 degrees (3/4 Barb x 7/8 ORB)

3шт.

13

H316331

HOSE

(3/4 x 33)

1шт.

14

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

4шт.

15

H380170

HOSE,0.75" ID x 16.70", SAE 30R2 Type 2

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 3/4 JIC M)

1шт.

Trencher Equipped Units Only

1шт.

17

W11743

HOSE - 1/2 x 37 (3/4 JIC Fe Sw Both Ends)

1шт.

Trencher Equipped Units Only

1шт.

18

214389

PLUG,3/4" - 16 ORB

1шт.

Units Equipped With Plow Only

1шт.
