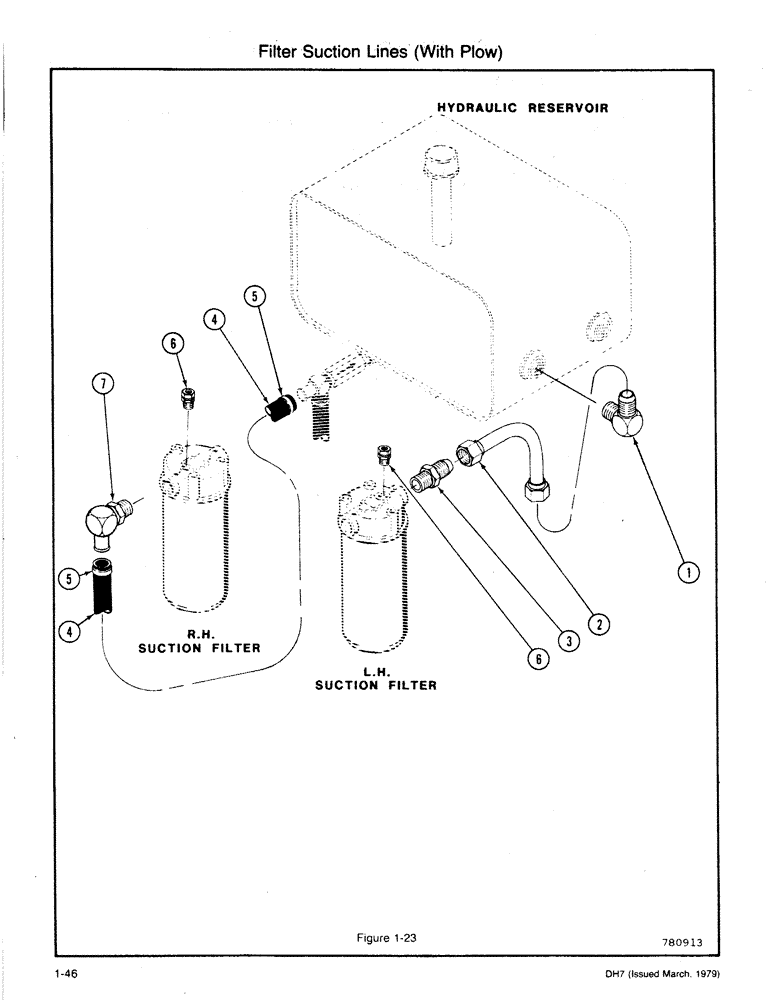

Запчасти Case DH7 (1-46) - FILTER SUCTION LINES (WITH PLOW) (35) - HYDRAULIC SYSTEMS

1

218-1068

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/4"-11 1/2, NPTF

- 90 degrees (1-5/16 JIC M x 1-1/4 MP)

1шт.

2

H648659

TUBE ASSEMBLY - 1" OD (1-5/16 JIC Fe Sw Both Ends) 25.4 mm OD x 56, 44.5 mm L

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

4

W17738

HOSE

- 1 x 72, Includes: Ref. 5

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose

2шт.

6

218-5096

ADAPTER

CONNECTOR (3/4 ORB x 1/8 Fe P)

2шт.

7

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degrees (1-5/16 ORB x 1 Barb)

1шт.
