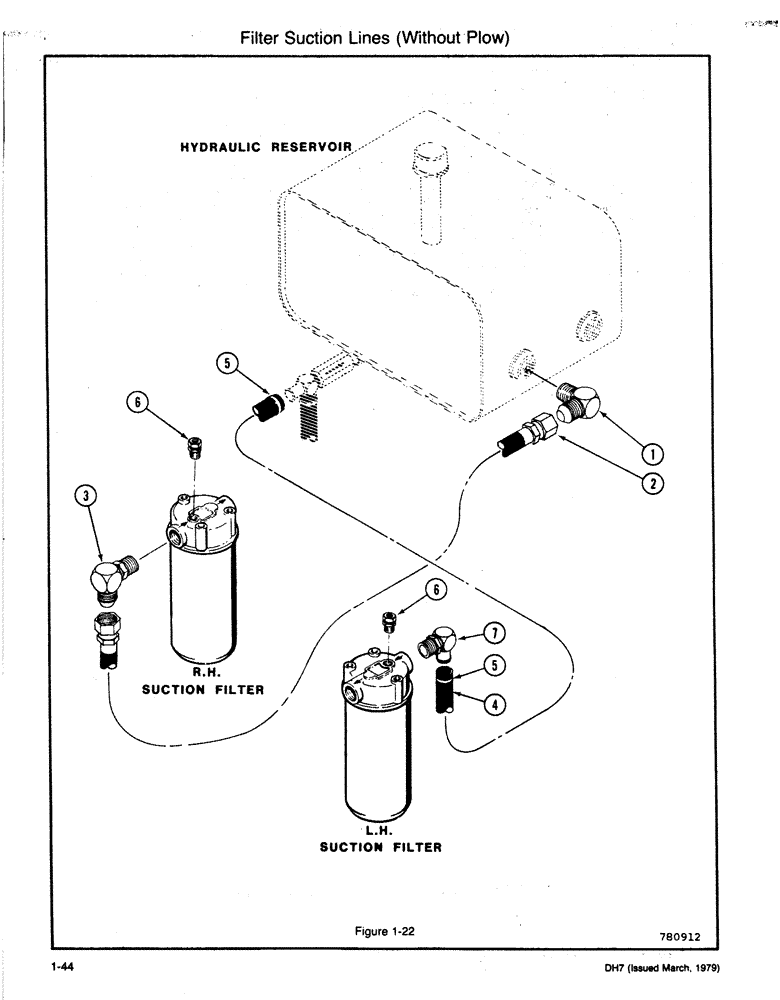

Запчасти Case DH7 (1-44) - FILTER SUCTION LINES (WITHOUT PLOW) (35) - HYDRAULIC SYSTEMS

1

218-489

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

- 90 degrees (1 5/8 JIC M x 1-1/4 MP)

1шт.

2

H379727

HOSE,1.25" ID x 67.00", SAE 100R4

1шт.

3

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/8 JIC M x 1-5/16 ORB)

1шт.

4

H167601

HOSE

- 1 x 46, Includes: Ref. 5

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose

2шт.

6

218-5096

ADAPTER

CONNECTOR (3/4 ORB x 1/8 Fe P)

2шт.

7

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degrees (1-5/16 ORB x 1 Barb)

1шт.
