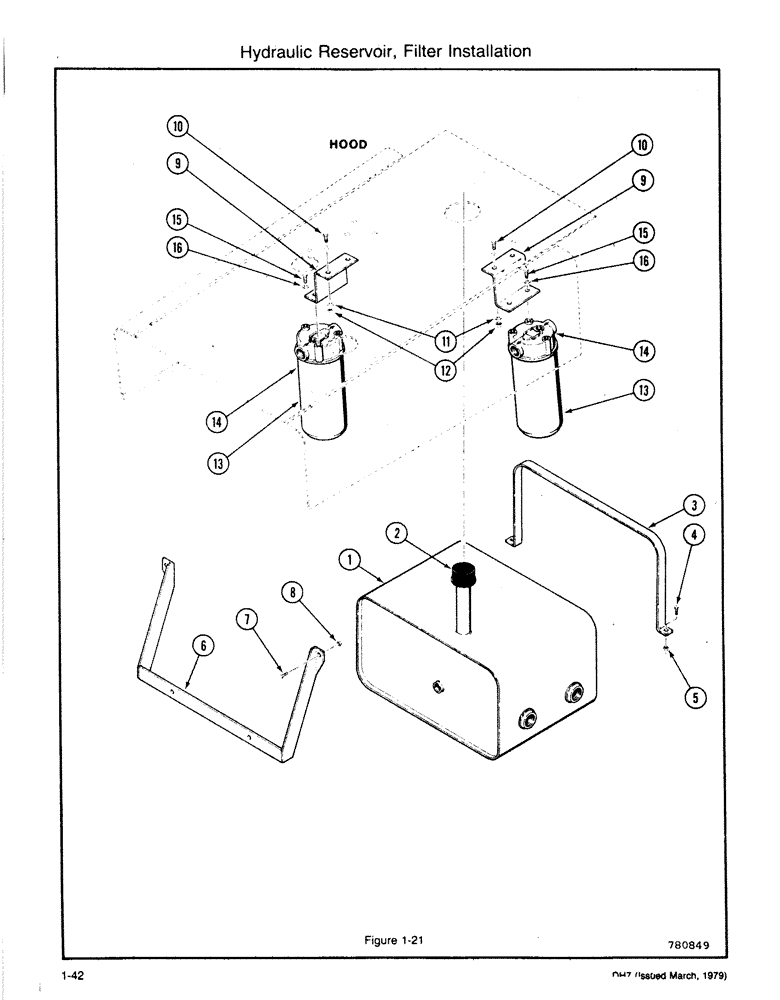

Запчасти Case DH7 (1-42) - HYDRAULIC RESERVOIR, FILTER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H653006

TANK, HYDRAULIC OIL

RESERVOIR - Hydraulic, Includes: Ref. 2

1шт.

2

H291039

DIPSTICK

/BREATHER

1шт.

3

H337055

STRAP

Includes: Ref. 4 and 5

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

6

H635672

STRAP, Includes: Ref. 7 and 8

1шт.

7

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

9

H652453

BRACKET

- Filter Mounting, Includes: Ref. 10 - 12

2шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

11

195-525

WASHER,3/8", SAE

- Flat (3/8)

4шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

4шт.

H642793

FILTER CARTRIDGE

FILTER - Suction, Includes: Ref. 13 - 16

2шт.

13

A45625

HYDRAULIC OIL FILTER

CARTIDGE - Filter

1шт.

Order A45625 Cartridge Kit. Includes 2 cartridges and 2 gaskets.

1шт.

14

R29825

BASE

- Filter

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

16

195-525

WASHER,3/8", SAE

- Flat (3/8)

4шт.

H672076

KIT

filter rework

1шт.
