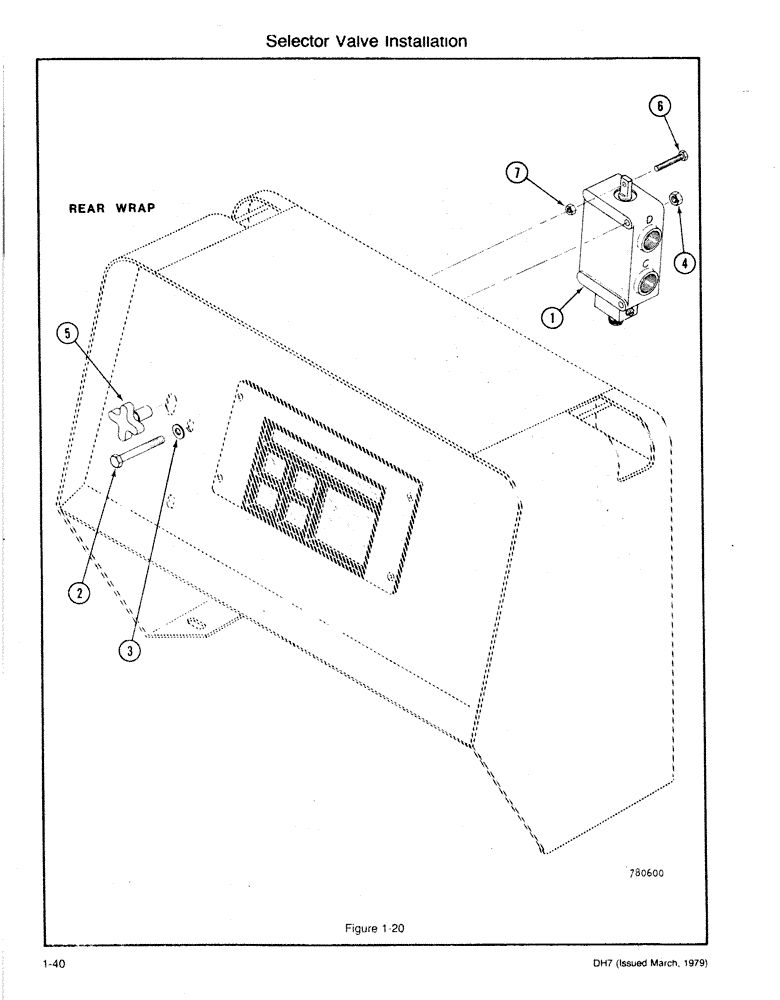

Запчасти Case DH7 (1-40) - SELECTOR VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H646943

LOCK VALVE

VALVE - Selector, Includes: Ref. 2 - 4

1шт.

2

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

3

195-525

WASHER,3/8", SAE

- Flat (3/8)

2шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

5

H355966

KNOB

Includes: Ref. 6 and 7

1шт.

6

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

7

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.
