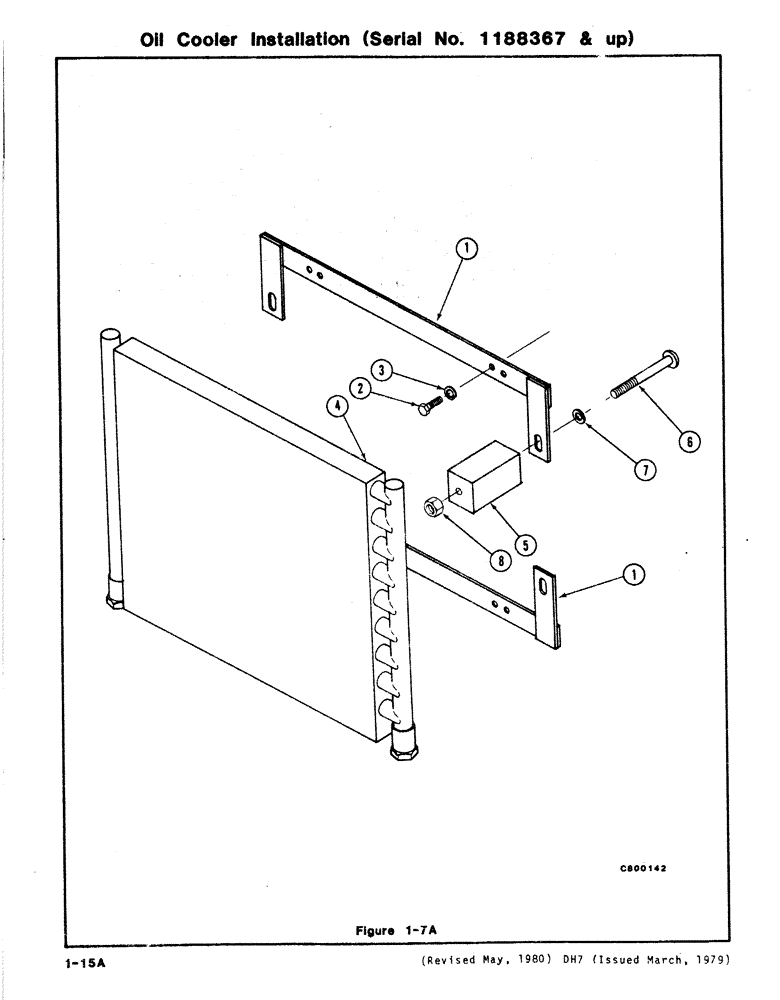

Запчасти Case DH7 (1-15A) - OIL COOLER INSTALLATION (SERIAL NO. 1188367 & UP) (35) - HYDRAULIC SYSTEMS

1

H648535

BRACKET ASSEMBLY - Oil Cooler Mounting, Includes: Ref. 2 and 3

2шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

H390104

COOLER

- Hydraulic Oil, Includes: Ref. 5 - 8

1шт.

5

H642926

MOUNTING PARTS

MOUNT KIT - Oil Cooler (includes 2 mounts)

2шт.

6

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

7

195-103

WASHER,5/16"

- Wrought (5/16)

4шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

4шт.
