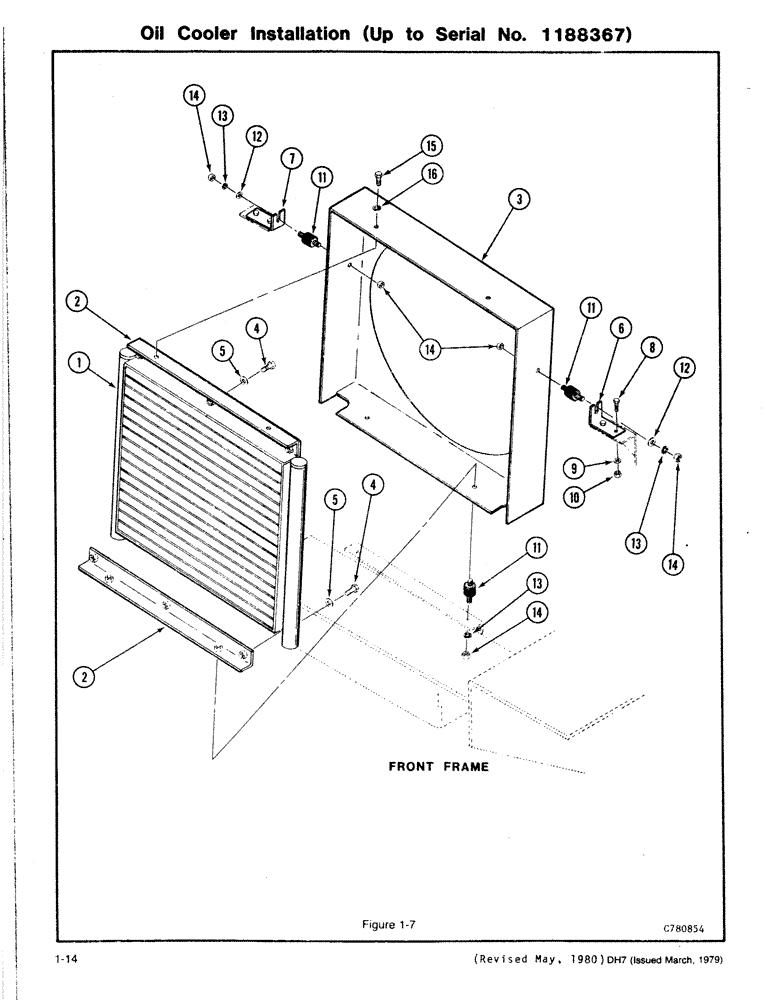

Запчасти Case DH7 (1-14) - OIL COOLER INSTALLATION (UP TO SERIAL NO. 1188367) (35) - HYDRAULIC SYSTEMS

1

H624791

COOLER, OIL

COOLER - Hydraulic Oil

1шт.

2

H625939

BRACKET

ASSY - Cooler

2шт.

3

H361550

SHROUD

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

5

195-525

WASHER,3/8", SAE

- Flat (3/8)

6шт.

6

H359067

ANGLE

- LH

1шт.

7

H359059

ANGLE

- RH

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

195-525

WASHER,3/8", SAE

- Flat (3/8)

4шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

4шт.

11

H359216

MOUNTING PARTS

MOUNT - Shroud

4шт.

12

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

14

129-578

NUT,5/16"-18, G5

NC HH (5/16)

6шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
