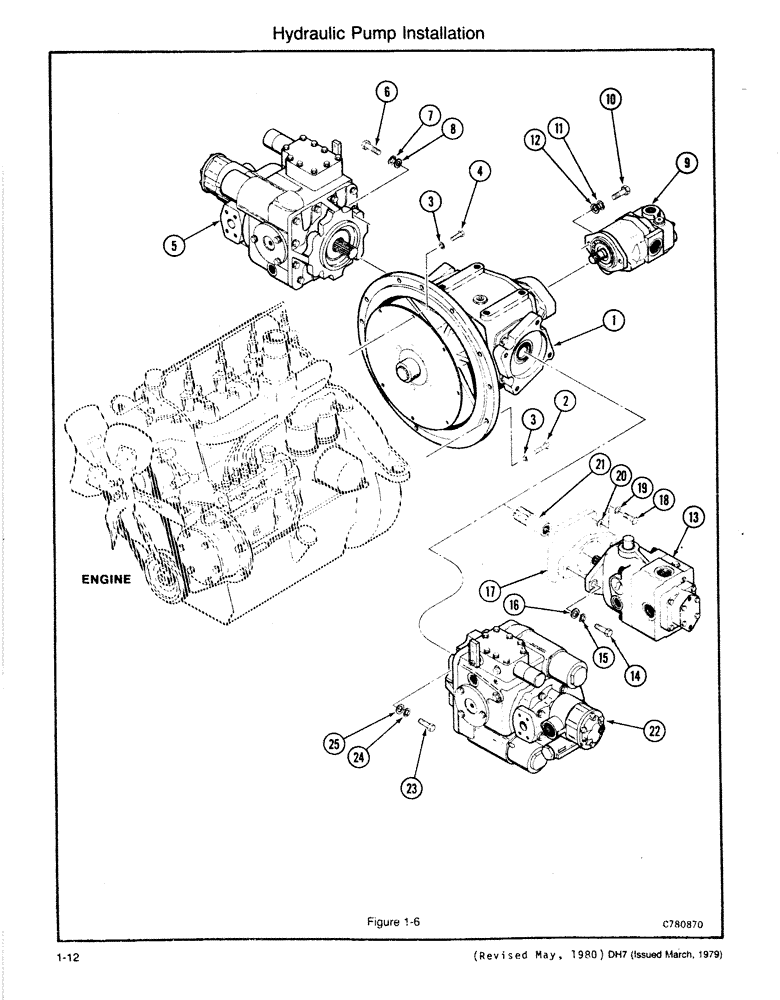

Запчасти Case DH7 (1-12) - HYDRAULIC PUMP INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H648097

PUMP

DRIVE ASSEMBLY (See Figure 1-68), Includes: Ref. 2 - 4

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

5

H638452

PUMP

ASSEMBLY - Propulsion (See Figure 1-74), Includes: Ref. 6 - 8

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

H274894

WASHER

- Flat HT (1/2)

4шт.

9

H274894

WASHER

PUMP ASSEMBLY - Steering (See Figure 1-84), Includes: Ref. 10 - 12

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

D41740

WASHER

- Flat HT (3/8)

2шт.

13

H596304

PUMP

ASSEMBLY - Accessory (18 series) (See Figure 3-30), Includes: Ref. 14 - 16

1шт.

Used on plow equipped units without trencher.

1шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

Used on plow equipped units without trencher.

1шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Used on plow equipped units without trencher.

1шт.

16

H274894

WASHER

- Flat HT (1/2)

2шт.

Used on plow equipped units without trencher.

1шт.

17

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

ADAPTER - Pump, Includes: Ref. 18 - 20

1шт.

Used on plow equipped units without trencher.

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

Used on plow equipped units without trencher.

1шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Used on plow equipped units without trencher.

1шт.

20

H274894

WASHER

- Flat HT (1/2)

4шт.

Used on plow equipped units without trencher.

1шт.

21

H382853

ADAPTER

- Spline

1шт.

Used on plow equipped units without trencher.

1шт.

22

H638460

PUMP

ASSEMBLY - Accessory (22 series) (See Figure 2-38)

1шт.

Used on all trencher equipped units.

1шт.

23

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

Used on all trencher equipped units.

1шт.

24

119-23

WASHER - Lock (1/2)

4шт.

Used on all trencher equipped units.

1шт.

25

H274894

WASHER

- Flat HT (1/2)

4шт.

Used on all trencher equipped units.

1шт.
