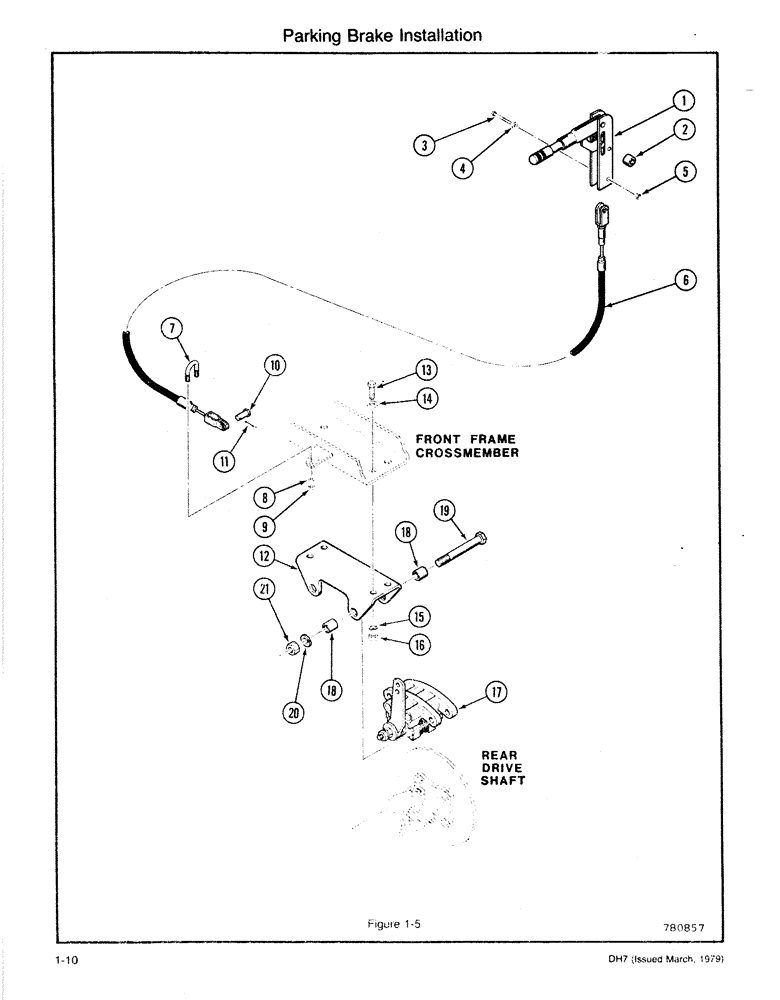

Запчасти Case DH7 (1-10) - PARKING BRAKE INSTALLATION (33) - BRAKES & CONTROLS

1

H506881

HANDLE

LEVER - Brake

1шт.

2

H165183

SPACER

Includes: Ref. 3 - 5

2шт.

3

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

4

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

6

H635417

CABLE PULLING GRIP

CABLE - Brake, Includes: Ref. 7 - 9

1шт.

7

H166421

HARDWARE

U BOLT

1шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

129-577

NUT,1/4"-20, G5

- NC Hex (1/4)

2шт.

10

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

11

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

12

H357798

BRACKET - Brake Mounting, Includes: Ref. 13 - 16

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

14

195-525

WASHER,3/8", SAE

- Flat (3/8)

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

H635391

CALIPER

CALLIPER ASSEMBLY - Brake (See Figure 1-61)

1шт.

18

H357764

SPACER

Includes: Ref. 19 - 21

2шт.

19

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

2шт.

20

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.
