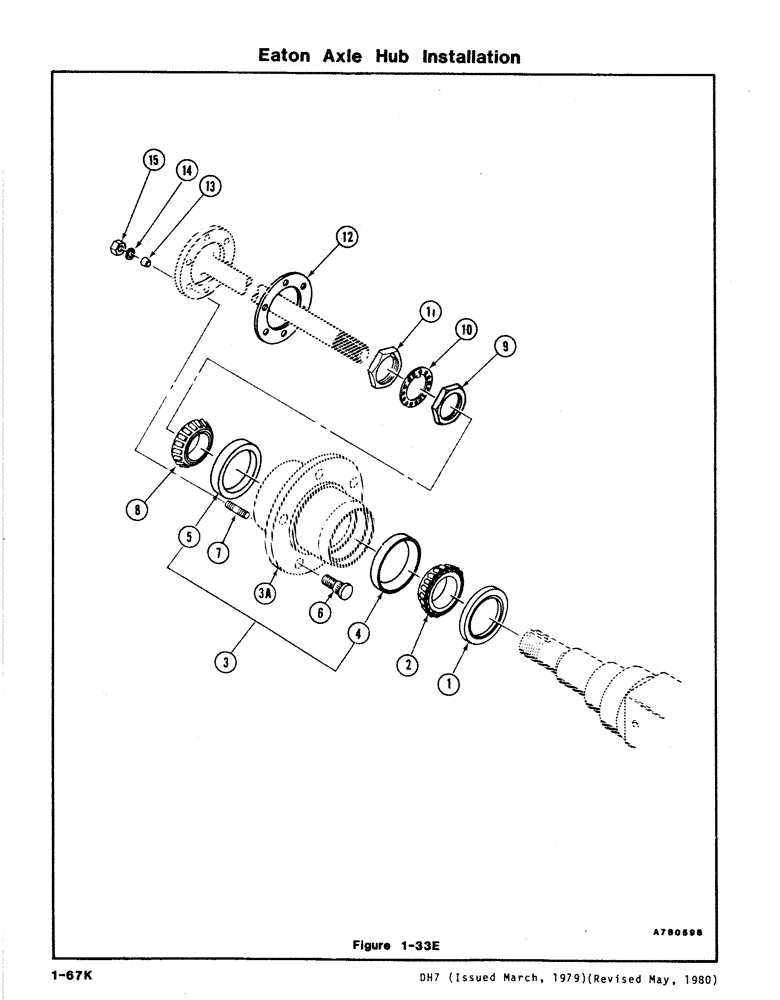

Запчасти Case DH7 (1-67K) - EATON AXLE HUB INSTALLATION (25) - FRONT AXLE SYSTEM

1

H395772

SEAL

GREASE SEAL - Hub

1шт.

2

H395764

BEARING, BALL

BEARING - Inner

1шт.

3

H651471

HUB CAP

HUB ASSEMBLY, Includes: Ref. 3A - 7

1шт.

3a

NSS

NOT SOLD SEPARAT

HUB

1шт.

4

H397661

CUP ASSY.

CUP - Inner

1шт.

5

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - Outer

1шт.

6

H399626

BOLT - Lug

6шт.

7

H399626

STUD

8шт.

8

A7891

ROLLER BEARING

BEARING - Outer

1шт.

9

H395806

NUT - Inner

1шт.

10

H395822

LOCK

1шт.

11

H395814

NUT - Outer

1шт.

12

H395780

GASKET

- Hub

1шт.

13

H395798

WEDGE - Stud

8шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

15

131-1170

LOCK NUT,7/16"-20, GA

NUT, LOCK, 7/16"-20, GA

8шт.
