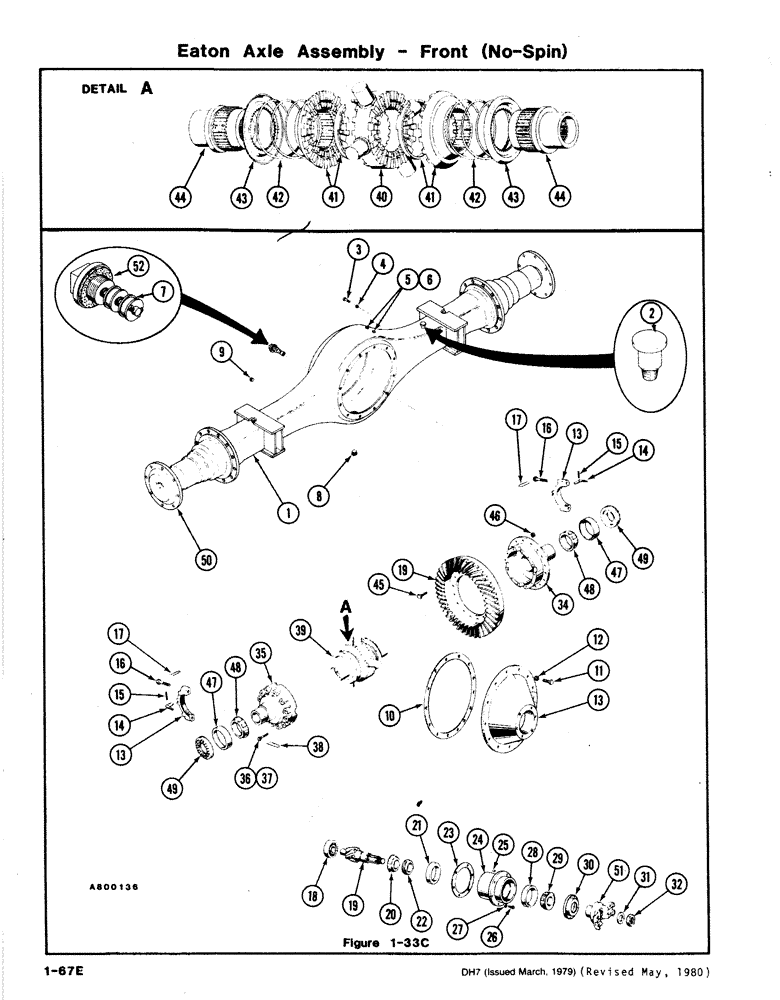

Запчасти Case DH7 (1-67E) - EATON AXLE ASSEMBLY - FRONT (NO-SPIN) (25) - FRONT AXLE SYSTEM

H651513

AXLE

ASSEMBLY - Front (no-spin), Includes: Ref. 1 - 52

1шт.

1

H401331

HOUSING - Axle

1шт.

2

H401349

FITTING - Vent

1шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

4

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

6

192-160

WASHER,5/16"

5/16"

2шт.

7

H654244

PLUG

- Filler Hole

1шт.

8

221-851

DRAIN PLUG,Hex Soc, 3/4"-14 NPTF

PLUG - Drain

1шт.

9

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - Pipe (1/2)

1шт.

10

GASKET (use RTV sealer)

1шт.

345-70

RTV - 1 oz tube (not shown)

1шт.

H654368

HEAD ASSEMBLY - Differential Carrier, Includes: Ref. 11 and 12

1шт.

11

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

12

192-162

LOCK WASHER,7/16"

7/16"

12шт.

13

H654251

DIFFERENTIAL CARRIER (includes matched bearing caps)

1шт.

14

H401356

LOCK - Adjuster

2шт.

15

132-91

COTTER PIN,3/16" x 1"

PIN, Split (Cotter), 3/16" x 1"

2шт.

16

S12175

BOLT NC HH (5/8 x 3-7/16) (Gr. 8 drilled hd)

4шт.

17

WIRE - Lock (16G)

1шт.

18

H758631

BEARING - Pinion Pilot

1шт.

19

H654376

RING GEAR and DRIVE PINION (matched set, includes Ref. 32)

1шт.

20

A44210

ROLLER BEARING,1.75" ID x 1.25"

BEARING CONE - Pinion (inner)

1шт.

21

F61284

BEARING CUP

- Pinion (inner)

1шт.

22

SPACER - Pinion - See chart page

1шт.

23

SHIM - Pinion Bearing Cage - See chart page

1шт.

24

H401364

CASE

BEARING CAGE - Pinion (includes cups and Refs. 21, 25 & 28)

1шт.

25

A45631

PIN

- Dowel (1/4 x 9/16)

1шт.

26

A44212

BOLT

NC HH (9/16 x 1-1/2)

6шт.

27

193-33

LOCK WASHER,9/16"

WASHER - Lock (9/16)

6шт.

28

F61284

BEARING CUP

- Pinion (outer)

1шт.

29

A44210

ROLLER BEARING,1.75" ID x 1.25"

BEARING CONE - Pinion (outer)

1шт.

30

H758649

OIL SEAL and RETAINER ASSEMBLY

1шт.

31

H401372

WASHER

- Flat (1)

1шт.

32

H758656

NUT

- Pinion EF (1) (self locking)

1шт.

H654384

DIFFERENTIAL ASSY - No-Spin, Includes: Ref. 34 - 44

1шт.

34

H658088

CASE - Diff (flanged half) (matched set, includes Refs. 36 & 37)

1шт.

35

H658088

CASE - Diff (flanged half) (matched set, includes Refs. 36 &37)

1шт.

36

H401455

BOLT NC HH (7/16 x 2 1/4) (Gr.5 drilled head)

4шт.

37

H401463

BOLT NC HH (7/16 x 2 7/8) (Gr.5 drilled head)

8шт.

38

WIRE - Lock (18G)

1шт.

39

H654392

DIFFERENTIAL ASSY

UNIT - No-Spin Differential, Includes: Ref. 40 - 44

1шт.

40

H654475

SPIDER and CENTER CAM ASSY

1шт.

41

L35998

CLUTCH ASSEMBLY

RING ASSY - Clutch and Holdout

2шт.

42

L36000

VALVE SPRING

SPRING

2шт.

43

A44688

DIFFERENTIAL

RETAINER - Spring

2шт.

44

H401638

SIDE GEAR

2шт.

45

H401471

BOLT - Special

16шт.

46

H401489

NUT NF HH Conelock (7/16)

16шт.

47

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

- Differential

2шт.

48

A18173

ROLLER BEARING

BEARING CONE - Differential

2шт.

49

A44214

NUT

BEARING ADJUSTER - Differential

2шт.

50

H401497

AXLE SHAFT

SHAFT - Axle

2шт.

51

H398412

YOKE

1шт.

52

H401745

WASHER - Sealing (rubber) (part of Ref. 7)

1шт.
