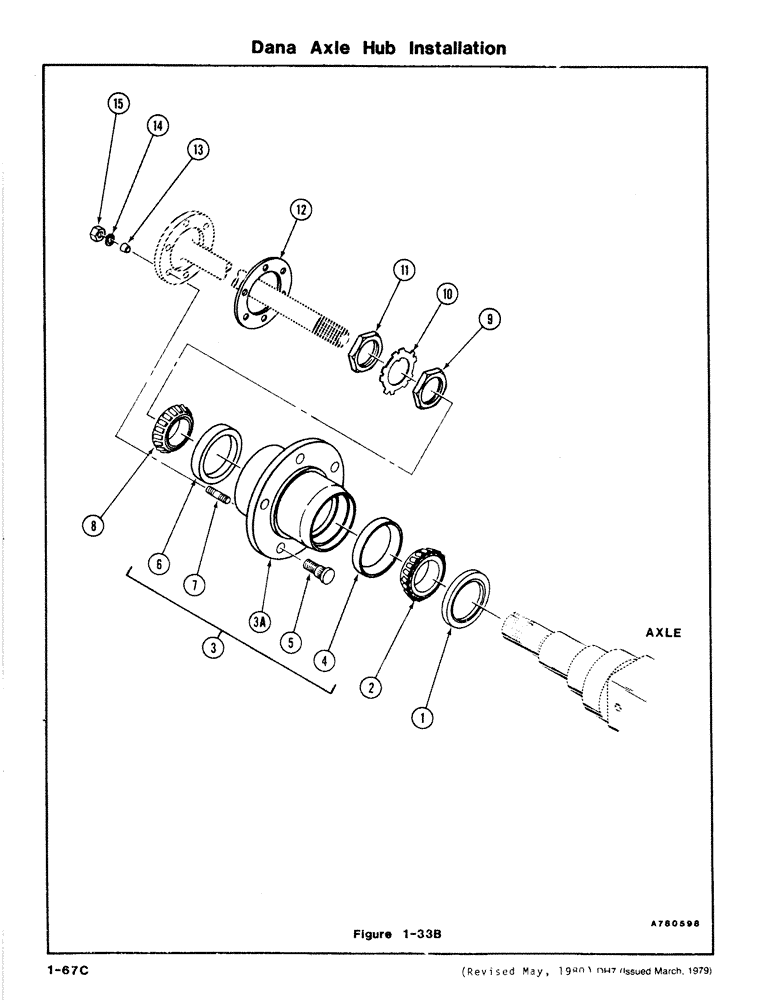

Запчасти Case DH7 (1-67C) - DANA AXLE HUB INSTALLATION (25) - FRONT AXLE SYSTEM

1

H754556

SEAL

GREASE SEAL - Hub

1шт.

2

A7891

ROLLER BEARING

BEARING - Inner

1шт.

3

H568170

HUB ASSY.

HUB ASSEMBLY, Includes: Ref. 3A - 7

1шт.

3a

NSS

NOT SOLD SEPARAT

HUB

1шт.

4

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

- Inner

1шт.

5

H214908

BOLT

BOLT - Lug

5шт.

6

H754549

CUP ASSY.

BEARING CUP - Outer

1шт.

7

H214882

STUD

6шт.

8

A10001

ROLLER BEARING,2.0625" ID x 1.193"

BEARING - Outer

1шт.

9

H216283

NUT

- Inner

1шт.

10

H216309

WASHER

- Nut Lock

1шт.

11

H216317

NUT

- Outer

1шт.

12

H217018

GASKET

- Wheel Hub

1шт.

13

H214890

ADAPTER

- Stud Nut

6шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

15

192-125

X

NUT NF HH (1/2)

6шт.

Ref.15 another nut used, not a sub.

1шт.
