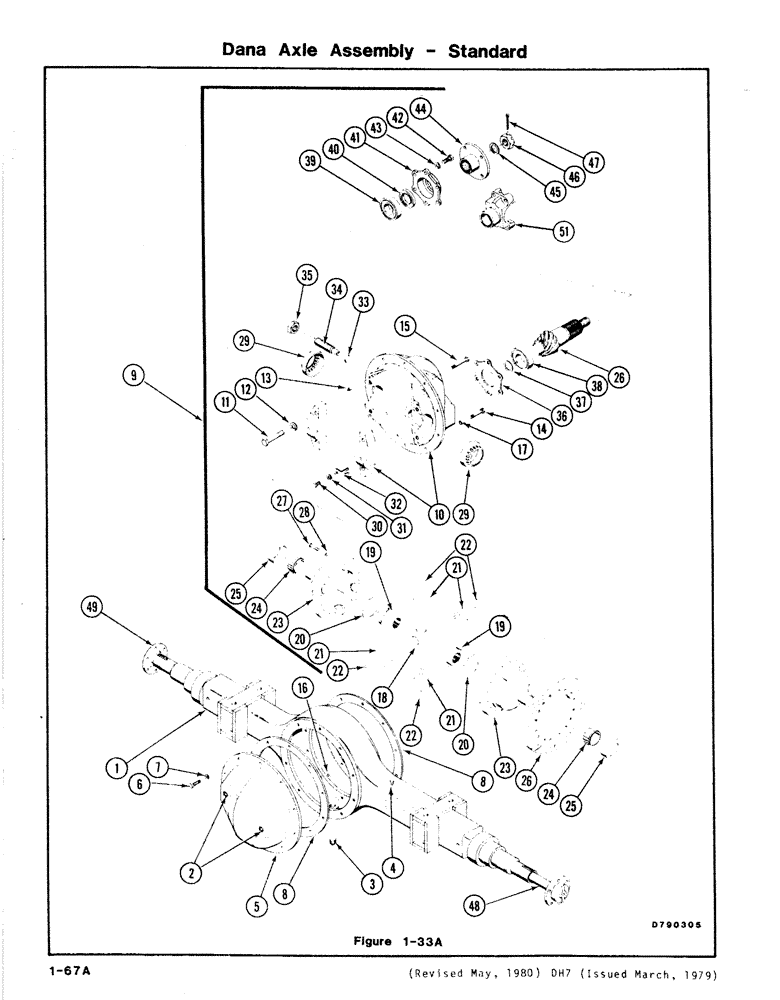

Запчасти Case DH7 (1-67A) - DANA AXLE ASSEMBLY - STANDARD (25) - FRONT AXLE SYSTEM

H653576

AXLE ASSEMBLY - Front (Standard), Includes: Ref. 1 - 7

1шт.

H653884

AXLE ASSEMBLY - Rear (Standard), Includes: Ref. 1 - 7

1шт.

When ordering this axle assembly for units that have H653014 Drive Joint Kit installed, order also (1) one H398420 Yoke.

1шт.

1

H648550

HOUSING - Axle

1шт.

2

221-845

PLUG,Hex Soc, 3/4"-14

- Cover

2шт.

3

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

1шт.

4

H390054

VENT

- Axle Air

1шт.

5

H389916

COVER - Differential, Includes: Ref. 6 and 7

1шт.

6

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

10шт.

7

192-162

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

8

345-84

ADHESIVE

SEALER - Used in Place of Gaskets, Includes: Ref. 9 - 49

1шт.

9

H648568

CARRIER ASSEMBLY, Includes: Ref. 10 - 47

1шт.

10

H648584

HOUSING & CAP ASSEMBLY - Carrier, Includes: Ref. 11 - 16

1шт.

11

113-2616

SCREW,Hex, 5/8"-11 x 3 1/4", G8

BOLT HH NC (5/8 x 3.25) (Gr.8)

4шт.

12

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

H395285

DOWEL

4шт.

14

H395319

STUD NC NF (7/17 x 2.25)

4шт.

15

H395301

STUD NC NF (7/16 x 1.88)

6шт.

16

131-472

LOCK NUT,7/16"-14

NUT - Lock NC (7/16) (Gr.C)

10шт.

17

H395293

ADAPTER

4шт.

18

H396036

CROSS SHAFT

SHAFT - Cross

1шт.

19

H396044

GEAR

- Side

2шт.

20

H396028

WASHER

- Thrust

2шт.

21

H396051

PINION

4шт.

22

H396010

WASHER

- Thrust

4шт.

23

H648626

COVER ASSY

CASE & COVER ASSEMBLY - Differential

1шт.

24

H758532

BEARING, ROLLER

BEARING CONE - Differnetial Side

2шт.

25

H758540

BEARING, CUP

BEARING CUP - Differential Side

2шт.

26

H648634

RING GEAR & PINION ASSEMBLY

1шт.

27

114-410

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HH NF (1/2 x 2) (Gr.7) Another bolt used (NOT A SUB) Part 28-832

12шт.

28

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

29

H395277

NUT - Lock (Bearing Adjusting)

2шт.

30

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Adjusting nut lock Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

31

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

32

H389957

LOCK - Differential Adj. Nut

2шт.

33

H389965

PAD - Thrust

1шт.

34

H389973

SCREW - Thrust Pad

1шт.

35

129-169

JAM NUT,Jam, 7/8"-14, G5

1шт.

36

H389981

GASKET

1шт.

37

H389999

RING - Lock, Pinion Shaft Bearing

1шт.

38

A12947

ROLLER BEARING

- Pinion Shaft (rear)

1шт.

39

H758565

BEARING

BALL BEARING - Pinion Shaft (front)

1шт.

40

H758557

SEAL

- Oil

1шт.

41

H390005

RETAINER, Includes: Ref. 42 and 43

1шт.

42

113-2635

BOLT,Locking, 5/8" - 11 x 1-3/4", Gr 8

HH NC (5/8 x 1.75) (Gr.8)

6шт.

43

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

44

H390021

FLANGE - Companion - Rear Axle Only

1шт.

44a

H390013

YOKE - Front Axle Only, Serial Range: 1164542-1188367

1шт.

Units that do not have H653014 Drive Joint Kit installed

1шт.

44a

H398420

YOKE

- Front Axle Only, Serial Range: 1164542-1188367

1шт.

Units that have H653014 Drive Joint Kit installed

1шт.

45

H758573

WASHER - 1-1/8 SAE

1шт.

46

H758581

NUT HHNF (1-1/8)

1шт.

48

H390039

SHAFT - Axle (short)

1шт.

49

H390047

SHAFT - Axle (long)

1шт.

50

H648642

BEARING SET

(Not Shown) (Includes Refs. 23, 24, 37, 38)

1шт.

47

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
