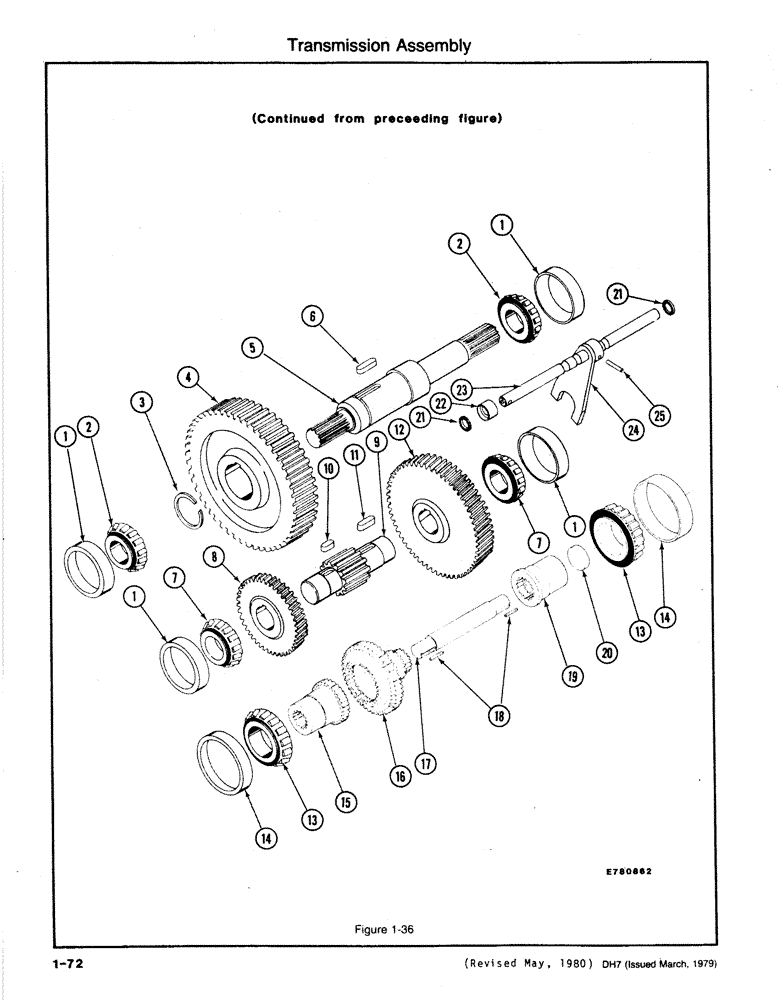

Запчасти Case DH7 (1-72) - TRANSMISSION ASSEMBLY (21) - TRANSMISSION

H648071

TRANSMISSION ASSEMBLY - 2 Speed, Includes: Ref. 1 - 25

1шт.

1

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - Bearing

4шт.

2

H758128

BEARING

CONE - Bearing

2шт.

3

D26919

SNAP RING,#200, Ext

RING, Snap, #200, Ext

1шт.

4

H374702

GEAR - 66T

1шт.

5

H374736

SHAFT

1шт.

6

H388942

KEY (1/2 sq x 1-1/4) (rd end hard)

1шт.

7

H758169

ROLLER BEARING

CONE - Bearing

2шт.

8

H388736

GEAR - 47T - Spur

1шт.

9

H374710

GEAR - Shaft - 15T

1шт.

10

H374876

KEY (3/8 sq x 3/4) (rd end)

1шт.

11

H374884

KEY (3/8 sq x 1-7/32) rd end)

1шт.

12

H388751

GEAR - 74T - Spur

1шт.

13

567846R91

CONE

- Bearing

2шт.

14

567845R1

CUP ASSY.

CUP - Bearing

2шт.

15

H396994

SLEEVE

- Clutch

1шт.

16

H388769

GEAR - Cluster - 16T - 42T - Spur

1шт.

17

H396986

SHAFT

1шт.

18

H397018

KEY

(3/16 sq x 1-1/8) (sq end)

2шт.

19

H397000

SLEEVE - Clutch

1шт.

20

41-1024

PLUG,Cup, 1 1/2"

- Expansion

1шт.

21

C13266

SEAL

2шт.

22

H374850

CARRIER - Seal

1шт.

23

H374827

SHAFT - Shift

1шт.

24

H374835

FORK

YOKE - Shift

1шт.

25

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1-1/4", Slotted

1шт.
