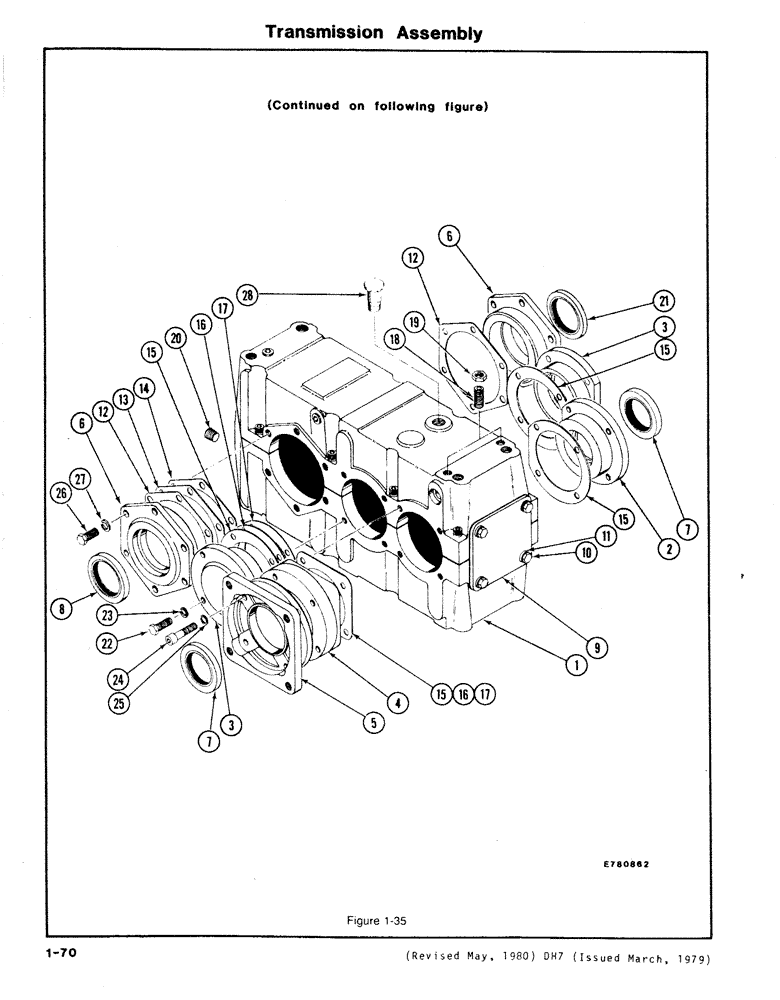

Запчасти Case DH7 (1-70) - TRANSMISSION ASSEMBLY (21) - TRANSMISSION

H648071

TRANSMISSION ASSEMBLY - 2 Speed, Includes: Ref. 1 - 28

1шт.

1

H374611

HOUSING

1шт.

2

H388777

COVER

1шт.

3

H373118

COVER

2шт.

4

H388793

SPACER

1шт.

5

H374645

FLANGE - Pump

1шт.

6

H374652

COVER

2шт.

7

H758177

SEAL

2шт.

8

A55434

SEAL

1шт.

9

H374769

COVER

1шт.

10

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

11

192-407

LOCK WASHER,7/16"

7/16"

4шт.

12

H374785

SHIM,.005" Thk

1шт.

13

H374793

SHIM,.007" Thk

1шт.

14

H374801

SHIM,.021" Thk

1шт.

15

H362681

SHIM,.005" Thk

1шт.

16

H362699

SHIM,.007" Thk

1шт.

17

H362707

BLOCK

SHIM (.020 T)

1шт.

18

H388801

PLUNGER ASSEMBLY - Spring

2шт.

19

129-148

JAM NUT,Jam, 3/4"-10, G5

- Jam HH (3/4)

2шт.

20

221-843

PLUG,Hex Soc, 3/8"-18

- Pipe (3/8 soc hd)

4шт.

Ref. 20 another plug is used, not a sub, 221-1843.

1шт.

21

H758201

SEAL

1шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

24

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

27

192-407

LOCK WASHER,7/16"

7/16"

12шт.

28

D57822

BREATHER

1шт.
