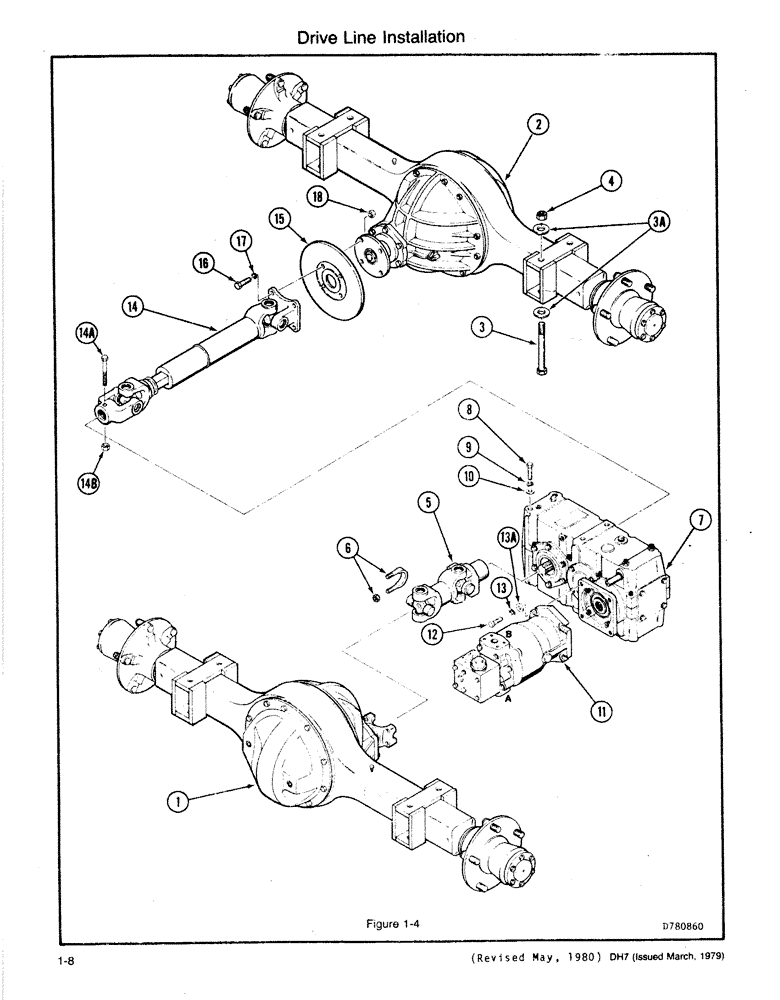

Запчасти Case DH7 (1-08) - DRIVE LINE INSTALLATION (14) - MAIN GEARBOX & DRIVE

1

H637058

CENTER AXLE

AXLE ASSEMBLY - Front (Dana No-Spin) (See Figure 1-66), Includes: Ref. 3, 3A and 4, Serial Range: 1164542-1188637

1шт.

H653576

AXLE ASSEMBLY - Front (Dana Standard) (See Figure 1-67A), Includes: Ref. 3, 3A and 4, Serial Range: 1164542-1188637

1шт.

H651513

AXLE

ASSEMBLY - Front (Eaton No-Spin) (See Figure 1-67E), Includes: Ref. 3, 3A and 4, Start Serial: 1188637

1шт.

2

H641084

AXLE ASSEMBLY - Rear (Dana No-Spin) (See Figure 1-66), Includes: Ref. 3, 3A and 4, Serial Range: 1164542-1188637

1шт.

H653584

AXLE ASSEMBLY - Rear (Dana Standard) (See Figure 1-67A), Includes: Ref. 3, 3A and 4, Serial Range: 1164542-1188637

1шт.

H651505

AXLE

ASSEMBLY - Front (Eaton Standard) (See Figure 1-67G), Includes: Ref. 3, 3A and 4, Start Serial: 1188637

1шт.

3

26-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

- NC HH (3/4 x 6 1/2) (Gr. 8), Serial Range: 1164542-1188637

8шт.

26-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

- NC HH (3/4 x 7 1/2) (Gr. 8), Start Serial: 1188637

8шт.

3a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Flat (3/4) (HT), Start Serial: 1188637

16шт.

4

131-1131

LOCK NUT,3/4"-10, GA

NUT - NC HH C/L (3/4), Serial Range: 1164542-1188637

8шт.

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC, Start Serial: 1188637

8шт.

5

H651588

DRIVE SHAFT

ASSEMBLY - Front (See Figure 1-62), Includes: Ref. 6

1шт.

6

D45971

BOLT

U-BOLT (includes nuts)

2шт.

7

H648071

TRANSMISSION ASSEMBLY (See Figure 1-70), Includes: Ref. 8 - 10

1шт.

8

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

9

D43666

TUBE

WASHER - Lock (5/8)

4шт.

10

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - Flat (5/8) (HT)

4шт.

11

H647172

MOTOR HOUSING

MOTOR ASSEMBLY - Propulsion (See Figure 1-76), Includes: Ref. 12, 13 and 13A

1шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13a

H274894

WASHER

- Flat (1/2) (HT)

4шт.

14

H652529

DRIVE SHAFT

ASSEMBLY - Rear (See Figure 1-64), Includes: Ref. 14A and 14B, Serial Range: 1164542-1188637

1шт.

H650937

DRIVE SHAFT

ASSEMBLY - Rear (See Figure 1-64), Includes: Ref. 14A and 14B, Start Serial: 1188637

1шт.

14a

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

, Serial Range: 1164542-1188637

1шт.

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

, Start Serial: 1188637

1шт.

14b

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC HH C/L (5/16)

1шт.

15

H357772

DISC - Brake, Includes: Ref. 16 - 18, Serial Range: 1164542-1188637

1шт.

H398271

DISC - Brake, Includes: Ref. 16 - 18, Start Serial: 1188637

1шт.

16

H360487

BOLT NF HH (716 x 1-19/32), Serial Range: 1164542-1188637

4шт.

H398495

BOLT NF HH (1/2 x 1-23/32), Start Serial: 1188637

4шт.

17

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16", Serial Range: 1164542-1188637

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2", Start Serial: 1188637

4шт.

18

131-1247

LOCK NUT,7/16"-20, GC

NUT NF HH (7/16), Serial Range: 1164542-1188637

4шт.

131-1248

LOCK NUT,1/2"-20, GC

NUT, LOCK, 1/2"-20, GC, Start Serial: 1188637

4шт.

Change (STANDARD) H651596 front and rear.

1шт.
