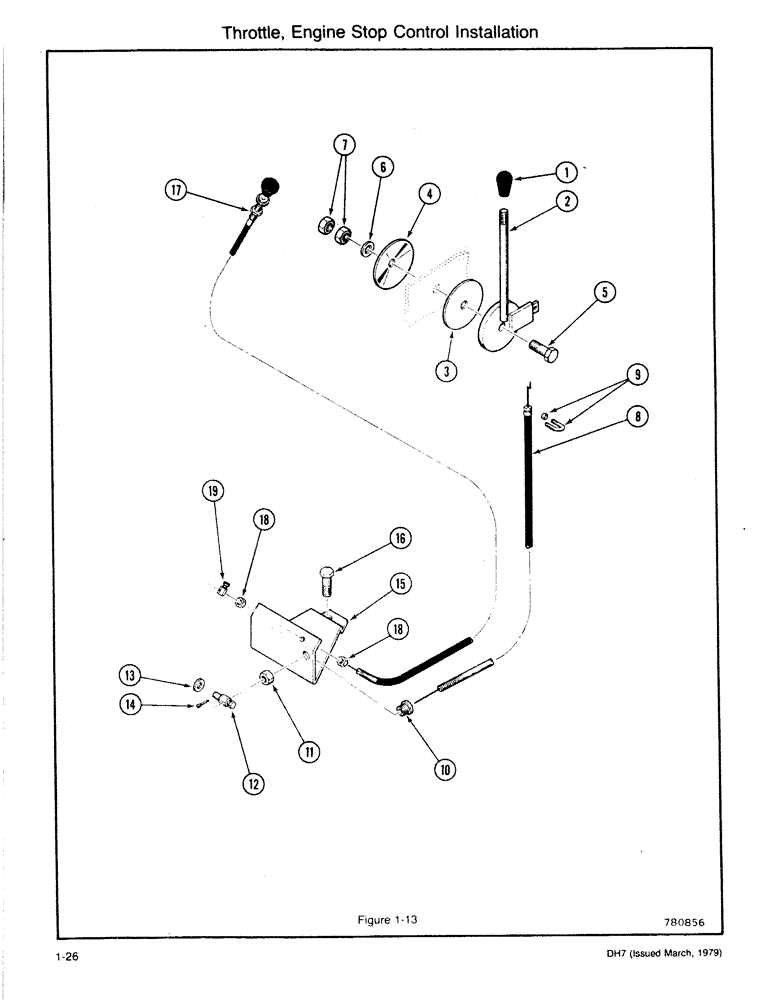

Запчасти Case DH7 (1-26) - THROTTLE, ENGINE STOP CONTROL INSTALLATION (10) - ENGINE

1

A14051

GRIP

KNOB

1шт.

2

H643692

HANDLE

- Throttle

1шт.

3

R15071

DISC

- Friction

1шт.

4

R14771

WASHER

- Bellville, Includes: Ref. 5 - 7

1шт.

5

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

6

195-525

WASHER,3/8", SAE

- Flat (3/8)

1шт.

7

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex Jam (3/8)

2шт.

8

H398966

CABLE PULLING GRIP

CABLE - Throttle, Includes: Ref. 9 - 11

1шт.

9

H381269

U-BOLT

U BOLT (includes nuts)

1шт.

10

H99457

PIPE CLAMP

NUT - Conduit

1шт.

11

86585245

SPECIAL NUT,JAM, 5/8" - 18

- NC Hex Jam (3/8)

1шт.

12

H564047

CONTROL

FITTING

1шт.

13

195-518

WASHER,1/4", SAE

- Flat (1/4)

2шт.

14

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

15

H385732

BRACKET - Cable, Includes: Ref. 16

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

H381749

CABLE PULLING GRIP

CABLE - Engine Stop, Includes: Ref. 18

1шт.

18

H243782

NUT

- Cable

2шт.

19

H42796

STOP

- Wire

2шт.
