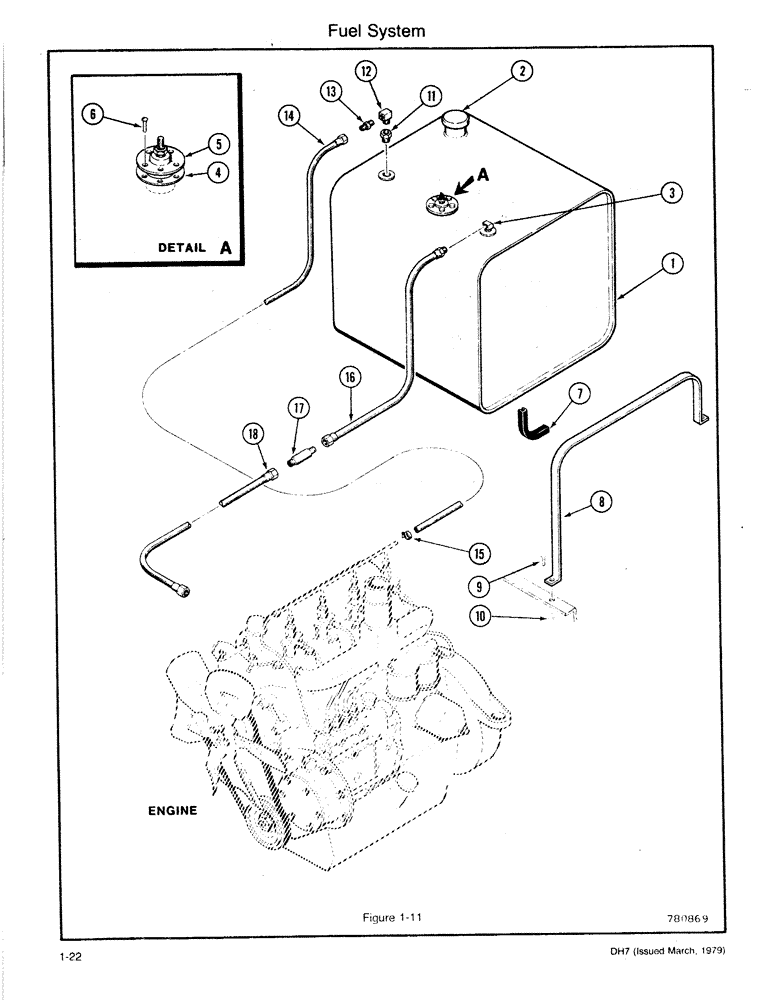

Запчасти Case DH7 (1-22) - FUEL SYSTEM (10) - ENGINE

1

H624676

FUEL TANK

TANK ASSEMBLY - Fuel, Includes: Ref. 2 - 6

1шт.

2

H151274

CYLINDER END CAP

CAP - Fuel

1шт.

3

H409250

TUBE - Withdrawl

1шт.

4

H378547

GASKET

- Fuel Sender

1шт.

5

H634907

SENDER UNIT

SENDER - Fuel, Includes: Ref. 6

1шт.

6

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- Pan Head (#10-24 x 1/2)

5шт.

7

D33500

LINING

TRIM - Fuel Tank

4шт.

8

H366278

STRAP - Fuel Tank, Includes: Ref. 9 and 10

2шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

4шт.

11

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING

1шт.

12

222-763

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/4" NPT

1шт.

Ref.12 another elbow used, not a sub part.

1шт.

13

222-803

HYD CONNECTOR,7/16"-20, 45º Fl x 1/4" NPT

CONNECTOR

1шт.

14

H236455

LINE

HOSE - Fuel

1шт.

15

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.

16

H50302

LINE

- Fuel

1шт.

17

221-335

COUPLING,Pipe, 1/8" NPT

1шт.

18

H50302

LINE

- Fuel

1шт.
