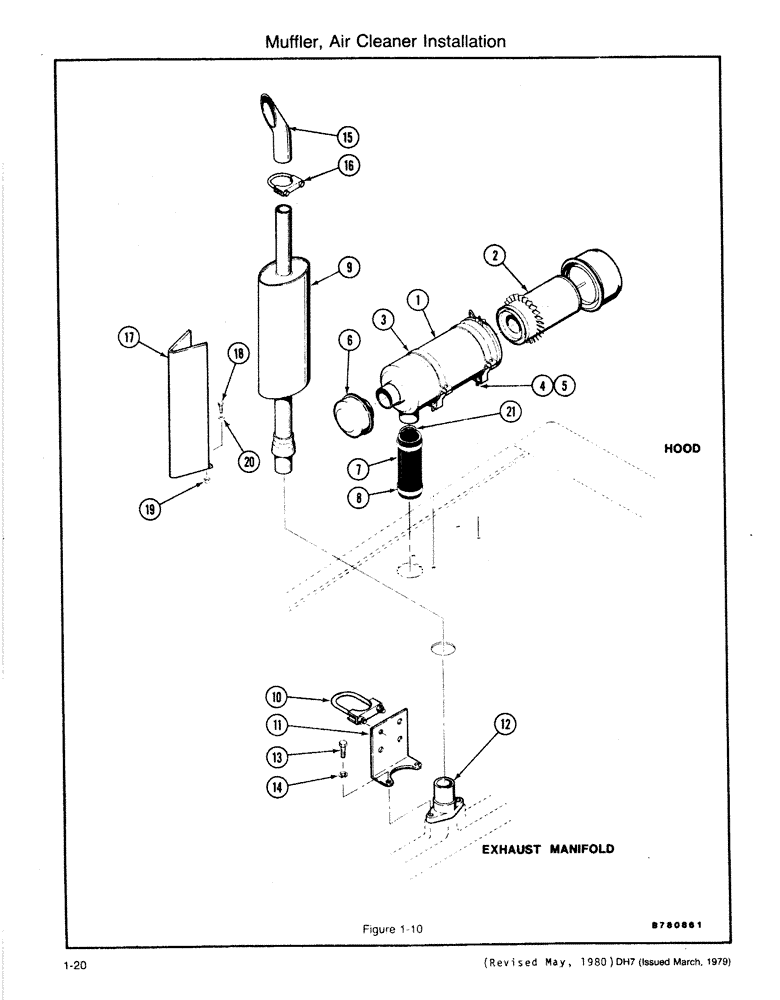

Запчасти Case DH7 (1-20) - MUFFLER, AIR CLEANER INSTALLATION (10) - ENGINE

1

H129536

CLEANER

AIR CLEANER - Assembly, Includes: Ref. 2

1шт.

2

F84998

FILTER, ELEMENT

ELEMENT - Air Cleaner

1шт.

3

L11247

BAND

- Mounting, Includes: Ref. 4 and 5

2шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

4шт.

6

A61276

AIR CLEANER

CAP - Air Stack

1шт.

7

A30162

HOSE - Air Cleaner, Includes: Ref. 8

1шт.

8

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

9

A39561

MUFFLER

Includes: Ref. 10

1шт.

10

A27115

CLAMP

- Muffler

2шт.

11

H395848

BRACKET

- Muffler Support

1шт.

12

H395830

ADAPTER

- Muffler, Includes: Ref. 13 and 14

1шт.

13

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

A39571

PIPE, EXHAUST SYSTEM

EXTENSION - Muffler, Includes: Ref. 16

1шт.

16

G45410

CLAMP

- Extension

1шт.

17

H395855

GUARD

SHIELD - Muffler, Includes: Ref. 18 - 20

1шт.

Used only with front mounted backhoe.

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

Used only with front mounted backhoe.

1шт.

19

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

Used only with front mounted backhoe.

1шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

4шт.

Used only with front mounted backhoe.

1шт.

21

H399667

SPRING - Hose

1шт.

22

F84999

CLAMP,168.28mm

1шт.

23

L30338

BOLT,Band Clamp Wing, 1/4" - 20 x 3.875", Gr 2

CLIP

1шт.

24

25-225

SQUARE NUT,Sq, 5/16"-24

square

1шт.

25

D78354

WING NUT

NUT wing, includes washer D37976

1шт.

F91760

CUP

COVER Air Cleaner

1шт.
