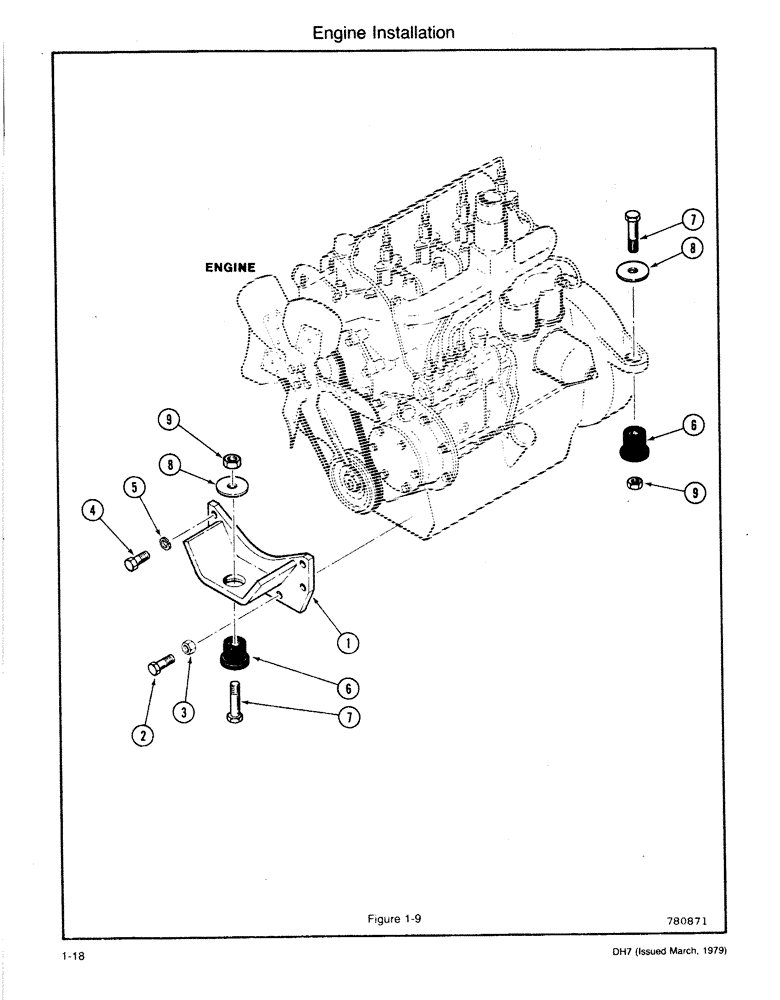

Запчасти Case DH7 (1-18) - ENGINE INSTALLATION (10) - ENGINE

1

H635706

MOUNT - Engine Front, Includes: Ref. 2 - 5

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

2шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

MOUNT - Engine, Includes: Ref. 7 - 9

3шт.

Ref.6 another engine mount used not a sub P/N H426916.

1шт.

7

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

3шт.

8

CASD35009

WASHER,16.67mm ID x 63.5mm OD

3шт.

9

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

3шт.

10

H639294

ENGINE - David Brown 219 CID (see David Brown Engine Catalog)

1шт.
