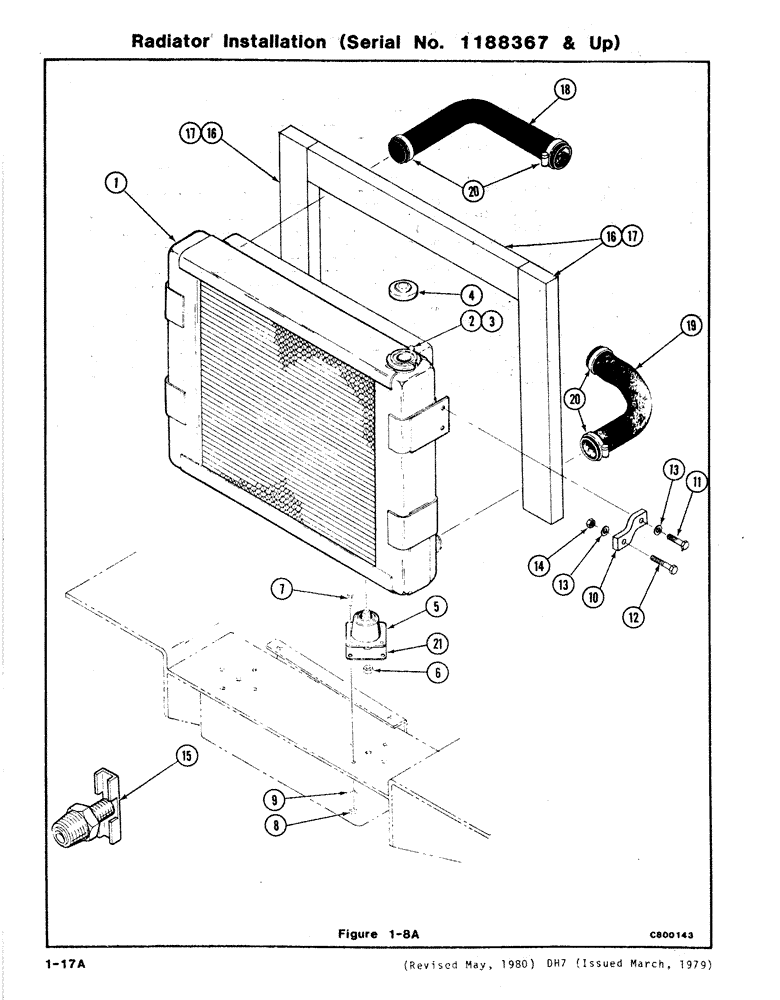

Запчасти Case DH7 (1-17A) - RADIATOR INSTALLATION (SERIAL NO. 1188367 & UP) (10) - ENGINE

1

L103034

RADIATOR

- Engine, Includes: Ref. 2 and 3

1шт.

2

HOSE - Overflow

1шт.

3

CLIP - Overflow Hose

2шт.

4

H339374

CYLINDER END CAP

CAP - Radiator

1шт.

5

H362798

SUPPORT

MOUNT - Radiator Lower

2шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

7

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

NC HH (1/4 x 1)

6шт.

8

195-518

WASHER,1/4", SAE

- Flat (1/4)

6шт.

9

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

10

L50641

CONNECTING STRIP

STRAP - Radiator Upper Mount

2шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

195-525

WASHER,3/8", SAE

- Flat (3/8)

4шт.

14

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

15

217-103

COCK, DRAIN

COCK - Drain

1шт.

16

H381806

FOAM

SEALER - Radiator Foam

3шт.

17

ADHESIVE (3M #1022) (not shown)

1шт.

18

H406033

HOSE - Radiator Upper

1шт.

19

H406025

HOSE ASSY.

HOSE - Radiator Lower

1шт.

20

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

21

H359117

SPACER

2шт.
