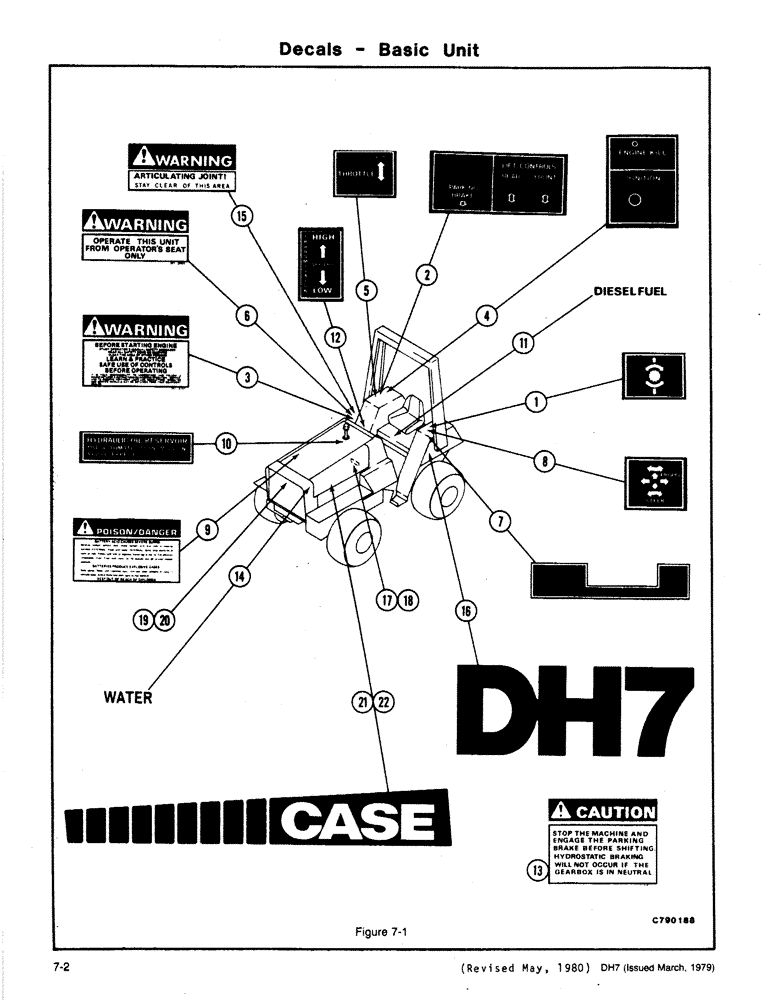

Запчасти Case DH7 (7-02) - DECALS - BASIC UNIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H289694

DECAL

- Creep

1шт.

2

321-4419

DECAL

- Parking Brake & Attachment Lift

1шт.

3

321-3705

DECAL

- Warning-Before Starting Engine

1шт.

4

321-5716

DECAL

- Ignition and Enginge Kill

1шт.

5

H286898

DECAL

- Throttle

1шт.

6

321-3905

DECAL

- Warning-Operate From Operator's Seat

1шт.

7

321-5091

DECAL

- Trencher/Plow

1шт.

8

H266627

DECAL

- Propulsion, Steering

1шт.

9

321-2996

DECAL

- Battery

1шт.

10

H277723

DECAL

- Hydraulic Oil Type

1шт.

11

321-230

DECAL

- Diesel Fuel

1шт.

12

321-5665

DECAL

- Range Select

1шт.

13

321-5501

DECAL

- Warning - Engage Parking Brake Before Shifting

1шт.

14

321-719

DECAL

- Water

1шт.

15

321-3218

DECAL

- Warning-Articulating Joint

2шт.

16

321-4445

DECAL

- DH7

2шт.

17

NSS

NOT SOLD SEPARAT

PLATE - Product Identification Number (PIN), Includes: Ref. 18

1шт.

18

168-59

SCREW,Type U, Rnd Hd, #2 x 1/4"

- Drive

2шт.

19

321-4739

EMBLEM

MEDALLION - Case, Includes: Ref. 20

1шт.

20

131-431

PUSH-ON NUT,Self, Threading, 1/4"

PALNUT

2шт.

21

321-5951

DECAL

- Case L.H. (Shown)

1шт.

22

321-5952

DECAL

- Case - R.H. (Not illustrated)

1шт.
