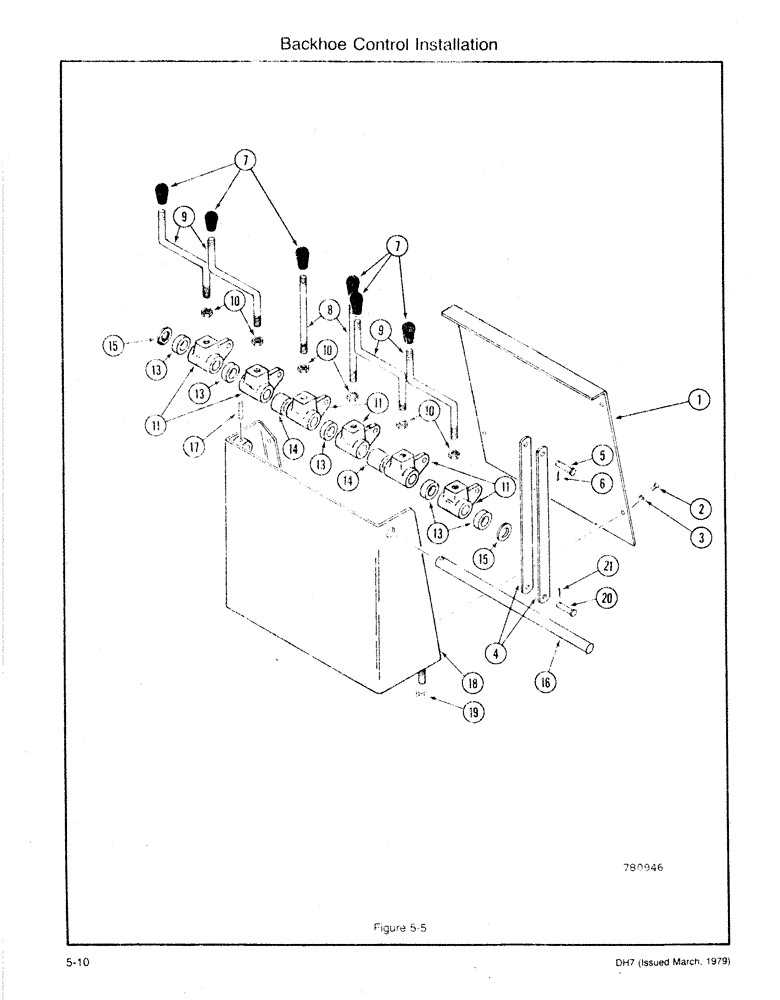

Запчасти Case DH7 (5-10) - BACKHOE CONTROL INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H387191

PLATE - Cover (Shown)

1шт.

RD -130 Backhoe (Front Mounted)

1шт.

1

H587287

PLATE

- Cover (Not Illustrated)

1шт.

D-130 Backhoe (Rear Mounted)

1шт.

2

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - Self Tap (5/16 x 3/4), Includes: Ref. 3

4шт.

3

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

4

H387217

LINK - Lever to Valve (Shown)

12шт.

RD -130 Backhoe (Front Mounted)

1шт.

4

H219006

DRAG LINK

LINK - Lever to Valve (Not Illustrated)

12шт.

D-130 Backhoe (Rear Mounted)

1шт.

5

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - Clevis (3/16 x 31/32)

6шт.

6

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

6шт.

7

A14051

GRIP

KNOB

6шт.

8

H242701

HANDLE

LEVER

2шт.

9

H259796

LEVER

4шт.

10

87016560

JAM NUT,Jam, 3/8"-16, G5

6шт.

11

H275255

CRANK LEVER

CASTING - Lever Handle

6шт.

13

H26468

SPACER

5шт.

14

H50716

SPACER

2шт.

15

195-541

WASHER,5/8", SAE

- Flat (5/8)

4шт.

16

H110262

SHAFT

- Lever Pivot

1шт.

17

138-2002

PIN,3/16" x 1 1/4", Coiled

3/16" x 1-1/4", Coiled

1шт.

18

H528893

LEVER

CONSOLE - Control (Shown), Includes: Ref. 19

1шт.

RD -130 Backhoe (Front Mounted)

1шт.

18

H567131

CONTROL

CONSOLE - Control (Not Illustrated), Includes: Ref. 19

1шт.

D-130 Backhoe (Rear Mounted)

1шт.

19

131-168

LOCK NUT,1/2"-20, GA

NUT - Hex (1/2 NF Lock)

2шт.

20

D23693

AXLE PIN

PIN - Clevis (1/4 x 1)

6шт.

21

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.
