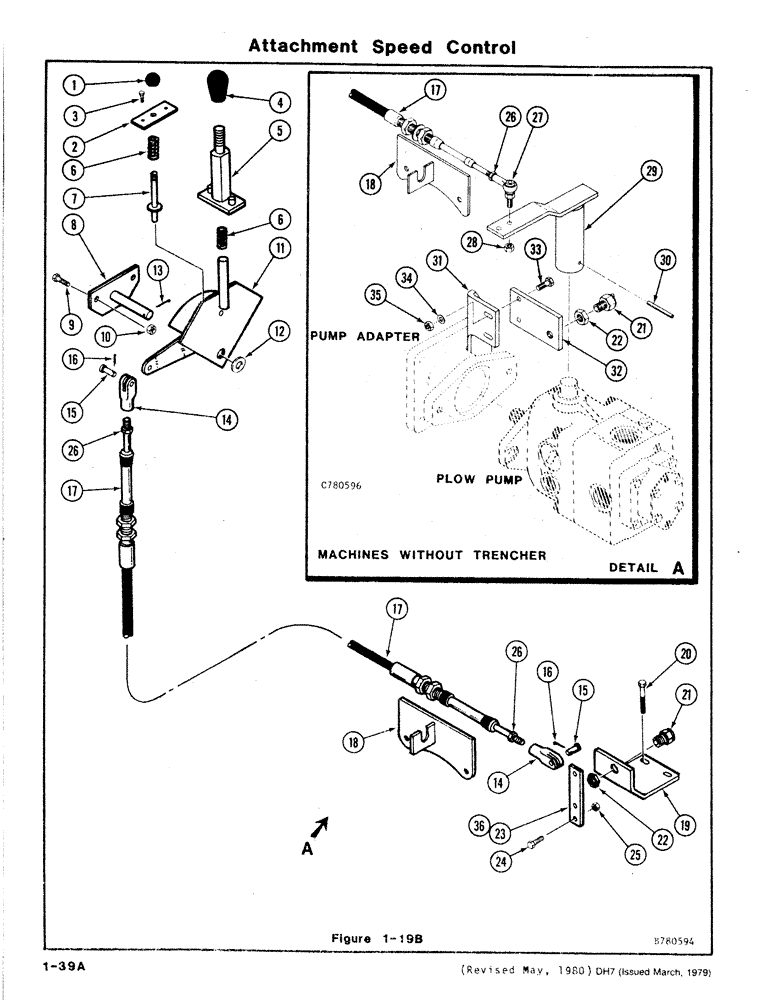

Запчасти Case DH7 (1-39A) - ATTACHMENT SPEED CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H249839

KNOB

1шт.

2

H378901

PLATE

- Spring Retainer, Includes: Ref. 3

1шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

H182113

KNOB

1шт.

5

H641043

HANDLE

- Lock

1шт.

6

A33044

SPRING

2шт.

7

H642892

ROD

- Plunger

1шт.

8

H643791

PLATE

- Lever Mounting, Includes: Ref. 9 and 10

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

2шт.

11

H643809

HANDLE

1шт.

12

195-533

WASHER,1/2", SAE

- Flat (1/2)

1шт.

13

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

14

H44198

YOKE

- Clevis

2шт.

15

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - Clevis

2шт.

16

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

17

H645853

CABLE PULLING GRIP

CABLE - Pump Control

1шт.

18

H637413

BRACKET

- Cable

1шт.

19

H378380

BRACKET - Neutral Start, Includes: Ref. 20, Serial Range: 1164542-1188367

1шт.

20

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- Hex Hd (1/4 x 2-1/2 NC), Serial Range: 1164542-1188367

3шт.

21

A139078

SWITCH

- Neutral Start, Another switch used (NOT A SUB) Part H406363, Includes: Ref. 22, Serial Range: 1164542-1188367

1шт.

All plow equipped units without trencher regardless of serial number.

1шт.

22

H380386

NUT

(9/16), Serial Range: 1164542-1188367

1шт.

All plow equipped units without trencher regardless of serial number.

1шт.

23

H642678

LEVER (with pin), Includes: Ref. 24 and 25, Serial Range: 1164542-1188367

1шт.

24

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

25

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

26

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

27

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - Ball

1шт.

Used on plow equipped units without trencher.

1шт.

28

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

1шт.

Used on plow equipped units without trencher.

1шт.

29

H646976

LEVER - Control, Includes: Ref. 30

1шт.

Used on plow equipped units without trencher.

1шт.

30

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

Used on plow equipped units without trencher.

1шт.

31

H387308

BRACKET - Mounting

1шт.

Used on plow equipped units without trencher.

1шт.

32

H387290

BRACKET - Neutral Start, Includes: Ref. 33 - 35

1шт.

Used on plow equipped units without trencher.

1шт.

33

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

Used on plow equipped units without trencher.

1шт.

34

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

Used on plow equipped units without trencher.

1шт.

35

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

2шт.

Used on plow equipped units without trencher.

1шт.

36

H365205

LEVER (without pin) 1188367 and, Start Serial: up

1шт.
