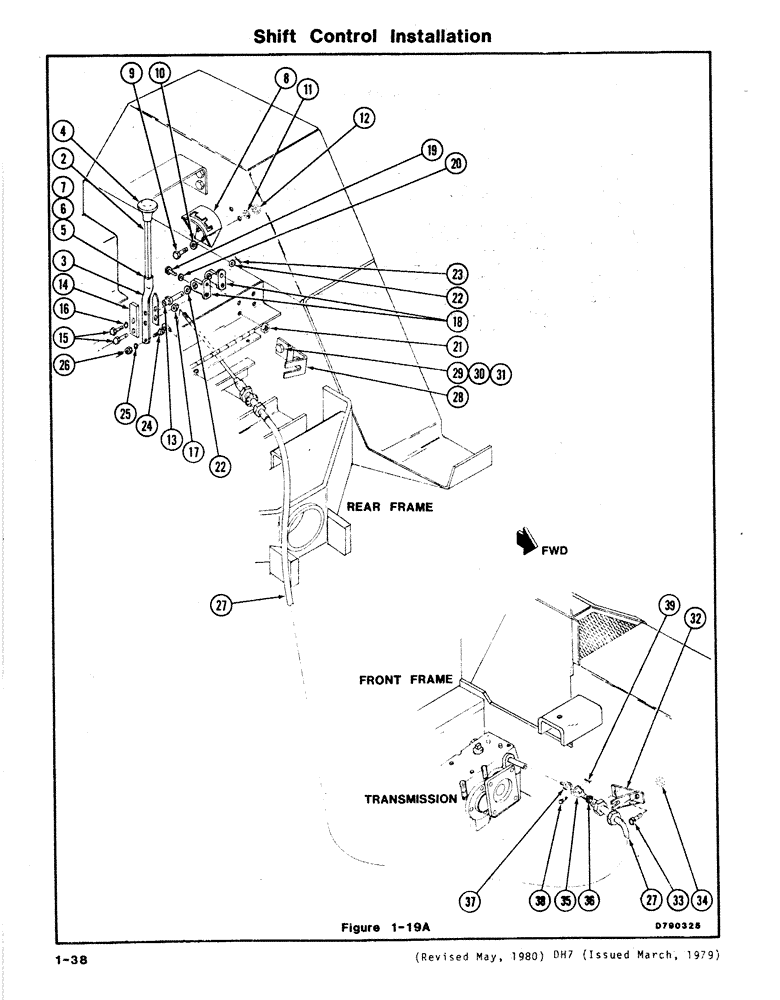

Запчасти Case DH7 (1-38) - SHIFT CONTROL INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

H648014

HANDLE ASSEMBLY - Shifter, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - Handle

1шт.

3

NSS

NOT SOLD SEPARAT

BAR - Adapter

1шт.

4

T34930

KNOB

1шт.

5

H387399

SPRING

1шт.

6

114-6

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

NF HH (1/4 x 1.25) (Gr. 8)

1шт.

7

131-1245

LOCK NUT,1/4"-28, GC

NUT NF HH C/L (1/4) (Gr. 6)

1шт.

8

H648022

PANEL

GATE, Includes: Ref. 9 - 12

1шт.

9

113-2217

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 2

NC HH (3/8 x 1-1/4)

2шт.

10

D41740

WASHER

- Flat (3/8) (HT)

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

H648006

LEVER

ASSEMBLY

1шт.

14

H389791

PLATE, Includes: Ref. 15 - 17

1шт.

15

113-163

HARDWARE,Hex, 5/16"-18 x 1 1/4", G2

BOLT NC HH (5/16 x 1-1/4)

2шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

17

131-665

LOCK NUT,5/16"-18, GB

NUT NC HH T/L (5/16)

1шт.

18

H558411

BEARING

MOUNTING ASSEMBLY - Shaft, Includes: Ref. 19 - 21

2шт.

19

113-163

HARDWARE,Hex, 5/16"-18 x 1 1/4", G2

BOLT NC HH (5/16 x 1-1/4)

4шт.

20

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

21

131-665

LOCK NUT,5/16"-18, GB

NUT NC HH T/L (5/16)

4шт.

22

195-2063

WASHER,5/8" x 1" x .065"

- Flat (5/8) (Special)

2шт.

23

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

24

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

END - Ball, Includes: Ref. 25 and 26

1шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

26

129-122

NUT,5/16"-24, G5

1шт.

27

H381764

CABLE PULLING GRIP

CABLE ASSEMBLY - Control

1шт.

28

H648030

BRACKET

- Cable, Includes: Ref. 29 - 31

1шт.

29

113-2218

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

NC HH (3/8 x 1-1/2)

2шт.

30

195-525

WASHER,3/8", SAE

- Flat (3/8)

2шт.

31

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT NC HH T/L (3/8)

2шт.

32

H648063

BRACKET - Cable, Includes: Ref. 33 and 34

1шт.

33

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

NC HH (1/2 x 1-1/4)

2шт.

34

131-1182

LOCK NUT,1/2"-13, GA

NUT NC HH T/L (1/2)

2шт.

35

H44198

YOKE

- Rod End

1шт.

36

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

37

H389783

BOLT - Eye, Includes: Ref. 38 and 39

1шт.

38

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - Clevis (5/16 x 1)

1шт.

39

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.
