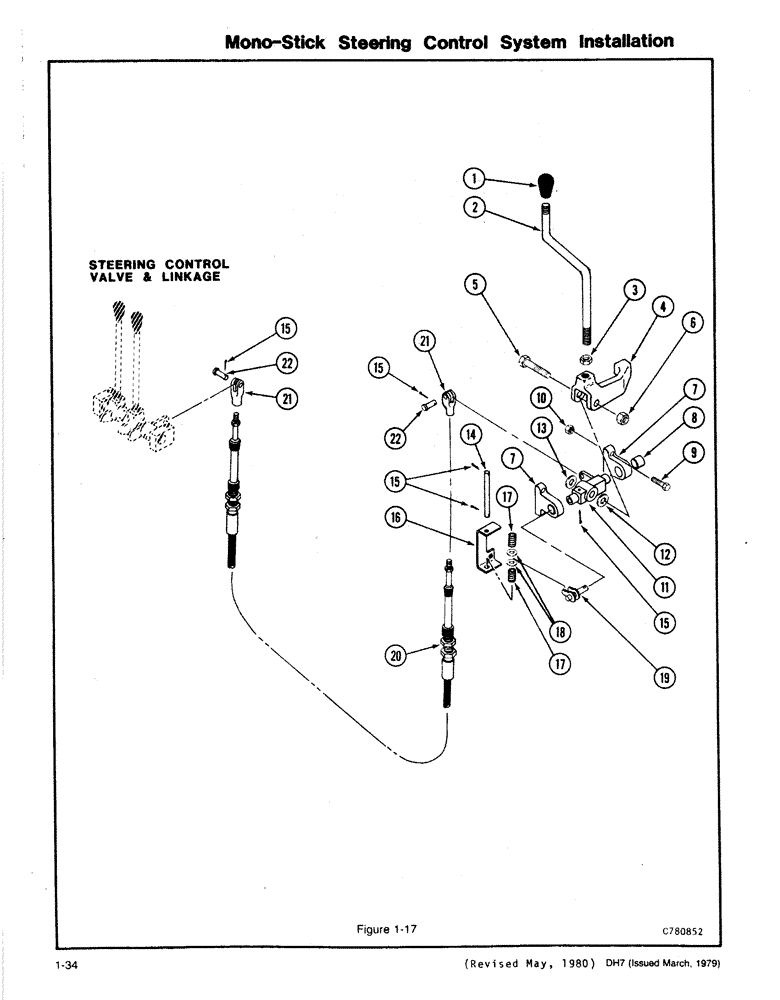

Запчасти Case DH7 (1-34) - MONO-STICK STEERING CONTROL SYSTEM INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H182113

KNOB

1шт.

2

H293084

HANDLE

LEVER - Steer

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H181982

CASTING

- Lever

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- Hex Hd (1/2 x 2-1/2 NC)

1шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - Hex (1/2 NC - Lock)

1шт.

7

H558411

BEARING

BUSHING AND CARRIER ASSEMBLY, Includes: Ref. 8 - 10

2шт.

8

H151894

BUSHING

1шт.

9

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

4шт.

11

H339077

SHAFT

1шт.

12

H182097

WASHER

- Friction

1шт.

13

H256305

WASHER

- Friction

1шт.

14

H196709

GUIDE

PIN - Guide, Includes: Ref. 15

1шт.

15

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

16

H196691

BRACKET

1шт.

17

H196717

VALVE SPRING

SPRING

2шт.

18

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

19

H560482

LEVER

1шт.

20

H644401

CABLE

- Steering

1шт.

21

H44198

YOKE

END - Clevis

2шт.

22

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - Clevis

2шт.
