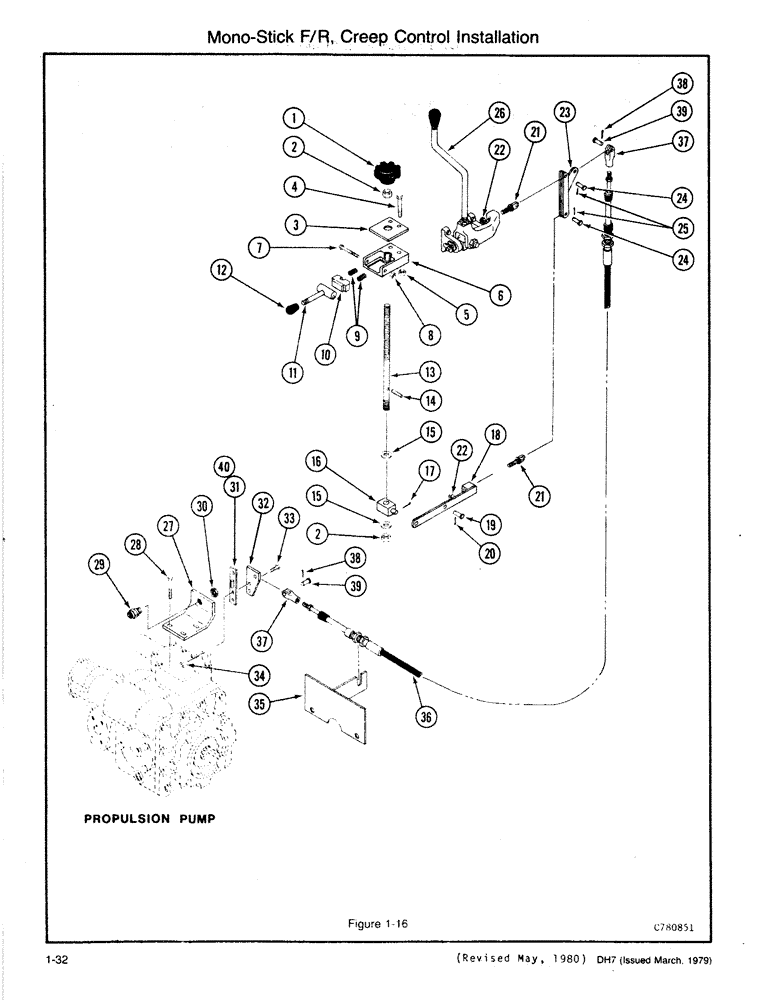

Запчасти Case DH7 (1-32) - MONO-STICK F/R, CREEP CONTROL INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H239004

KNOB

1шт.

2

131-1182

LOCK NUT,1/2"-13, GA

NUT - Hex (1/2 NC - Lock)

2шт.

3

H233767

COVER ASSY

PLATE - Cover, Includes: Ref. 4 and 5

1шт.

4

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

5

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

NUT - Hex (5/16 NC - Lock)

2шт.

6

H608885

CONTROL BLOCK

BASE

1шт.

7

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- Hex Hd (1/4 x 2-3/4 NC)

1шт.

8

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

9

H253864

VALVE SPRING

SPRING

2шт.

10

H608877

BLOCK

LOCK - Cam

1шт.

11

H618504

CAM

1шт.

12

A14051

GRIP

KNOB

1шт.

13

H255158

CONTROL BLOCK

SHAFT

1шт.

14

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

15

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

16

H237711

BLOCK

1шт.

17

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

18

H588798

LINK

1шт.

19

H44289

CLEVIS COUPLING

PIN - Clevis

1шт.

20

132-340

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

21

H217109

BOLT

BOLT - Eye

2шт.

22

131-149

LOCK NUT,5/16"-24, GA

NUT - Hex (5/16 NC - Lock)

2шт.

23

H587352

CONTROL

1шт.

24

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - Clevis

2шт.

25

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

26

CONTROL SYSTEM - Mono-Stick Steering (See Figure 1-34)

1шт.

27

H378380

BRACKET - Neutral Start, Includes: Ref. 28, Serial Range: 1164542-1188367

1шт.

28

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- Hex Hd (1/4 x 2-1/2 NC), Serial Range: 1164542-1188367

3шт.

29

A139078

SWITCH

- Neutral Start, Serial Range: 1164542-1188367

1шт.

Ref . 29 another switch used, not a sub

1шт.

30

H380386

NUT

- Hex (91/6), Serial Range: 1164542-1188367

1шт.

31

H642678

LEVER - Neutral Start (with pin), Serial Range: 1164542-1188367

1шт.

32

H365213

LEVER, Includes: Ref. 33 and 34

1шт.

33

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

34

113-1180

NUT - Hex (1/4 NC - Lock)

2шт.

35

H637405

BRACKET - Cable

1шт.

36

H645853

CABLE PULLING GRIP

CABLE - Propulsion

1шт.

37

H44198

YOKE

END - Clevis

2шт.

38

1329314

PIN - Cotter

2шт.

39

H44216

PIN - Clevis

2шт.

40

H365205

LEVER (without pin), Start Serial: 1188367

1шт.
